PA
No. 0129
SERVICE MANUAL
PA21FV
R/C: CLU-433PC R/C: CLU-433MC

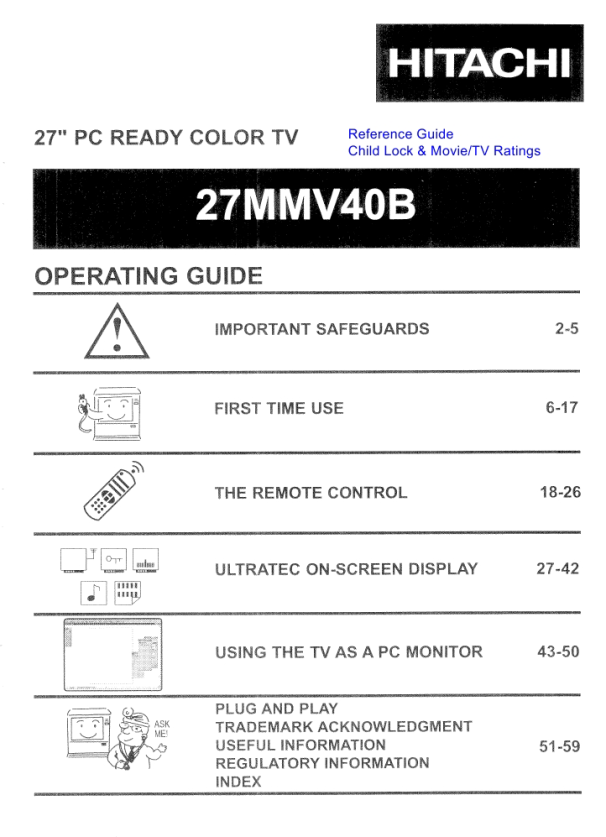

Models 27MMV40B and 27MMV30B are in the same Solid State Color Television family. The difference between the 27MMV40B and 27MMV30B is the Child Lock Movie Rating/TV Rating. Please refer to model 27MMV30B schematics, assembly, wiring, test, and troubleshooting information when servicing model 27MMV40B. Refer to Service Manual PA No. 0103 issued in July 1998 and Service Manual PA No. 0092 issued in March 1998.
REPLACEMENT PARTS LIST This parts list only gives parts which are different from the service manual PA No. 0092 and PA No. 0103. PRODUCT SAFETY NOTE: Components marked with a A have special characteristics important to safety. Before replacing any of these components, read carefully, the PRODUCT SAFETY NOTICE of this service manual. Do not degrade the safety of the receiver through improper servicing.
DESCRlPTIOhl
N201 N203 1001 Ql326893 H462676 CP04283 Instruction Book English - 266SP V-Chip Reference Guide Main Micro-controller M3727lMF
SPECIFICATIONS AND PARTS ARE SUBJECTTO CHANGE FOR IMPROVEMENT
PROJECTION
FEBRUARY 2000
COLOR TELEVISION
HHEA-MANUFACTURING DIVISION
|
|
|
> |
|
