Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Published by Service Dept. 298-6409-00 Dec.2006 Printed in Japan

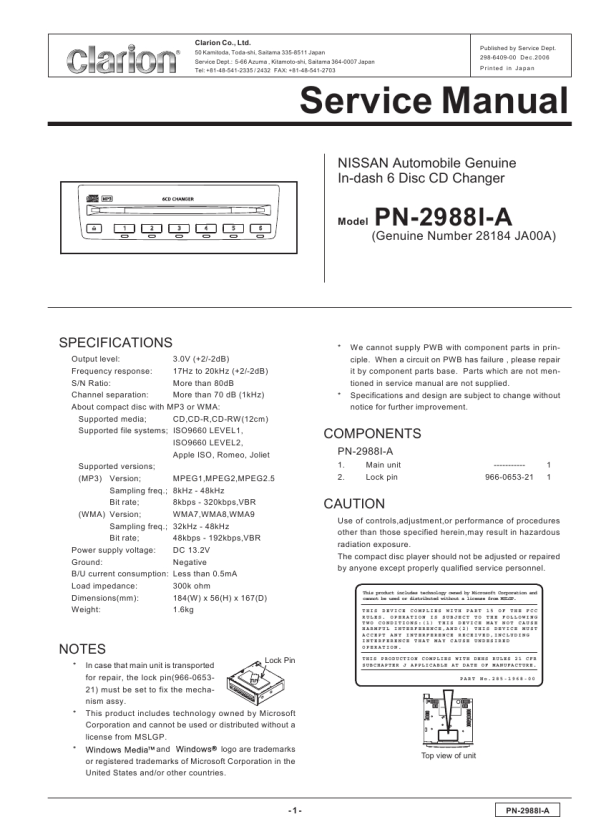

Service Manual
NISSAN Automobile Genuine In-dash 6 Disc CD Changer
Model
PN-2988I-A
(Genuine Number 28184 JA00A)
SPECIFICATIONS
Output level: 3.0V (+2/-2dB) Frequency response: 17Hz to 20kHz (+2/-2dB) S/N Ratio: More than 80dB Channel separation: More than 70 dB (1kHz) About compact disc with MP3 or WMA: Supported media; CD,CD-R,CD-RW(12cm) Supported file systems; ISO9660 LEVEL1, ISO9660 LEVEL2, Apple ISO, Romeo, Joliet Supported versions; (MP3) Version; Sampling freq.; Bit rate; (WMA) Version; Sampling freq.; Bit rate; Power supply voltage: Ground: B/U current consumption: Load impedance: Dimensions(mm): Weight: MPEG1,MPEG2,MPEG2.5 8kHz - 48kHz 8kbps - 320kbps,VBR WMA7,WMA8,WMA9 32kHz - 48kHz 48kbps - 192kbps,VBR DC 13.2V Negative Less than 0.5mA 300k ohm 184(W) x 56(H) x 167(D) 1.6kg
*
We cannot supply PWB with component parts in principle. When a circuit on PWB has failure , please repair it by component parts base. Parts which are not mentioned in service manual are not supplied. Specifications and design are subject to change without notice for further improvement.
*
COMPONENTS
PN-2988I-A
1. 2. Main unit Lock pin ----------966-0653-21 1 1
CAUTION
Use of controls,adjustment,or performance of procedures other than those specified herein,may result in hazardous radiation exposure. The compact disc player should not be adjusted or repaired by anyone except properly qualified service personnel.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE,AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. T HIS PR OD UCT I ON C OMP L I ES WIT H DHH S R U L ES 21 C F R S UBC H AP TE R J AP PL ICA B L E A T D A T E O F M A N UFA CTU R E . PART No.285-1968-00
NOTES
Lock Pin
*
In case that main unit is transported for repair, the lock pin(966-065321) must be set to fix the mechanism assy. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. and logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
*
*
Top view of unit
-1-
PN-2988I-A
|
|
|
> |
|
