Home >> CLARION >> 28185 EB50A Service Manual

 0 item(s) in your cart

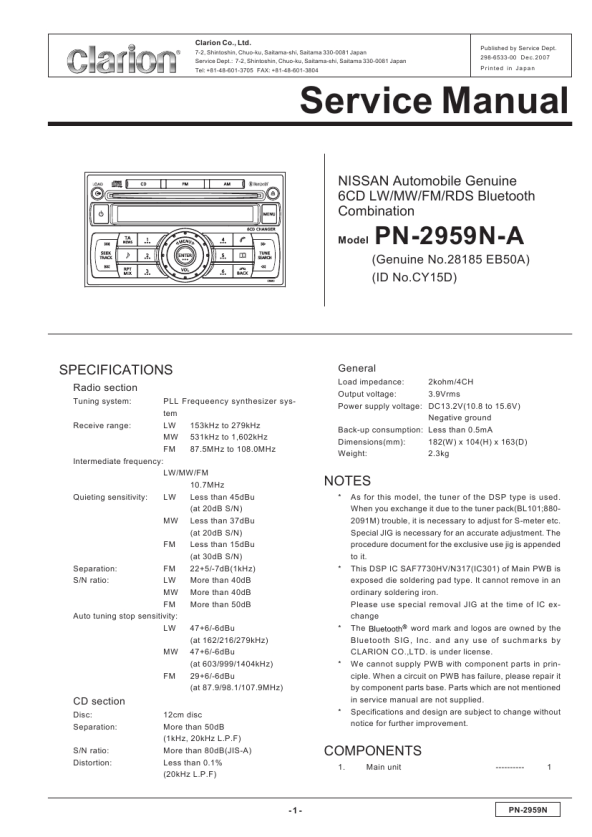

CLARION 28185 EB50A
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of CLARION 28185 EB50A Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CX-J510 PIONEER Service Manual by Cipian Padurariu;
It's a grate service manuals.Have many details and the writing it's so clear.You have all you want in manual,nothing missing,belive me.I'm verry satisfied of this manual.
 ECM77S SONY Service Manual by Stephane Pouliot;
Great scanned service manual Usefull informations. I will buy again! Best Regards
 STG55A/L TECHNICS Service Manual by Boris Yanchev;
The manual describes this product very good. It has the basic things to know and also a more detailed look. Very well made!
 HSPX910 AIWA Service Manual by John Ramsey;
An excellent document to assist in the repair of my old personal tape player. It includes full circuit diagrams and physical layout drawings and full instructions on disassembly and fault finding. Well worth the meagre price.
 DRD-810 ORION Service Manual by Hans-Guenther Dreyer;
Very good conversation, Pretty fast Service, wood do it again, Have paid by Paypal, so i got the Service Manual online after 15 Min. Very helpfully. Greeting from Germany, Hans

Text excerpt from page 4 (click to view)
The cellular phone and Bluetooth cannot be connected.

Check enter in a set screen of the telephone

NG
Check the power of IC901 (Bluetooth module)

NG

Confirm to IC901 (Bluetooth module) IC302 (the power of 3.3V)

OK Confirm to IC901 (Bluetooth module) the circuit of Q101,102,104,105,106,107,108

OK
Check how to connect by inquiry from the cellular phone

Confirm to NG IC901 (Bluetooth module) the circuit of Q101,102,104,105,106,107,108 ANT902 Confirm to NG IC901 (Bluetooth module) the circuit of ANT902

OK
Check the link of Bluettoth steady or the BT mark on

OK Confirm to connect Bluetooth with the cellular phone again

The receiving talk voice doesn't go out of the speaker.
Check connect it with the cellular phone

NG

Confirm to IC901 (Bluetooth module)

OK Check the sound of CD or radio OK
Check the call sound come to send it by telephone

Confirm to NG IC402 (DSP), IC501 (AMP), J502 (Connector)

OK
Check the power of IC901 (Bluetooth module)

OK

NG

Confirm to the circuit of IC302 (the power of 3.3V) Confirm to the circuit of IC302 (the power of 3.3V) Confirm to the circuit of IC101 (CODEC) IC901 (Bluetooth module) Confirm to the circuit of IC402 (DSP)

OK Check the power of IC101 (CODEC) OK Check the waveform of 9pin of IC101 OK
Check the waveform of 43pin of IC402(DSP)

NG

NG

NG

OK Confirm to the output of J502

PN-2959N

-4-
