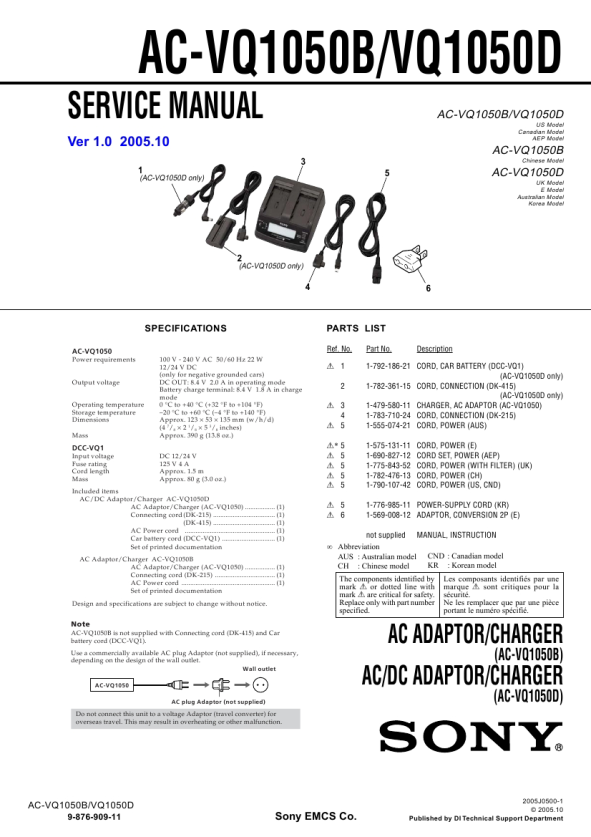

AC-VQ1050B/VQ1050D
SERVICE MANUAL
Ver 1.0 2005.10
3
1
(AC-VQ1050D only)
AC-VQ1050B/VQ1050D
US Model Canadian Model AEP Model
AC-VQ1050B
Chinese Model
5
AC-VQ1050D
UK Model E Model Australian Model Korea Model
2
(AC-VQ1050D only)
4
6
SPECIFICATIONS
AC-VQ1050
Power requirements Output voltage Operating temperature Storage temperature Dimensions Mass 100 V - 240 V AC 50/60 Hz 22 W 12/24 V DC (only for negative grounded cars) DC OUT: 8.4 V 2.0 A in operating mode Battery charge terminal: 8.4 V 1.8 A in charge mode 0 °C to +40 °C (+32 °F to +104 °F) �20 °C to +60 °C (�4 °F to +140 °F) Approx. 123 � 53 � 135 mm (w/h/d) (4 7/8 � 2 1/8 � 5 3/8 inches) Approx. 390 g (13.8 oz.) DC 12/24 V 125 V 4 A Approx. 1.5 m Approx. 80 g (3.0 oz.)
PARTS LIST
Ref. No. 01 2 03 4 05 0* 5 05 05 05 05 05 06 Part No. Description
1-792-186-21 CORD, CAR BATTERY (DCC-VQ1) (AC-VQ1050D only) 1-782-361-15 CORD, CONNECTION (DK-415) (AC-VQ1050D only) 1-479-580-11 CHARGER, AC ADAPTOR (AC-VQ1050) 1-783-710-24 CORD, CONNECTION (DK-215) 1-555-074-21 CORD, POWER (AUS) 1-575-131-11 CORD, POWER (E) 1-690-827-12 CORD SET, POWER (AEP) 1-775-843-52 CORD, POWER (WITH FILTER) (UK) 1-782-476-13 CORD, POWER (CH) 1-790-107-42 CORD, POWER (US, CND) 1-776-985-11 POWER-SUPPLY CORD (KR) 1-569-008-12 ADAPTOR, CONVERSION 2P (E)
DCC-VQ1
Input voltage Fuse rating Cord length Mass
Included items AC/DC Adaptor/Charger AC-VQ1050D AC Adaptor/Charger (AC-VQ1050) ................. (1) Connecting cord(DK-215) ................................... (1) (DK-415) ................................... (1) AC Power cord ................................................... (1) Car battery cord (DCC-VQ1) .............................. (1) Set of printed documentation AC Adaptor/Charger AC-VQ1050B AC Adaptor/Charger (AC-VQ1050) ................. (1) Connecting cord (DK-215) .................................. (1) AC Power cord ..................................................... (1) Set of printed documentation Design and specifications are subject to change without notice.
not supplied MANUAL, INSTRUCTION � Abbreviation AUS : Australian model CND : Canadian model CH : Chinese model KR : Korean model The components identified by Les composants identifiés par une mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
Note
AC-VQ1050B is not supplied with Connecting cord (DK-415) and Car battery cord (DCC-VQ1). Use a commercially available AC plug Adaptor (not supplied), if necessary, depending on the design of the wall outlet.
AC-VQ1050 Wall outlet
AC ADAPTOR/CHARGER
(AC-VQ1050B)
AC/DC ADAPTOR/CHARGER
(AC-VQ1050D)
AC plug Adaptor (not supplied)
Do not connect this unit to a voltage Adaptor (travel converter) for overseas travel. This may result in overheating or other malfunction.
AC-VQ1050B/VQ1050D
9-876-909-11
2005J0500-1 © 2005.10
Sony EMCS Co.
Published by DI Technical Support Department
|
|
|
> |
|
