There are currently no product reviews.
 ;
It took about 24-hours after my payment before I was able to get to the download. Apparently, payment processing is not 100% automated. That is no big deal, just be aware of that going in.
After I got to it, it was in good shape, easy to read, etc. Not some cheap FAX copy looking thing.
Also, this site was the cheapest I found. Another Plus!
 ;
Good price, very legible manual, exactly what I needed -- but had to wait a day to actually get the download of the manual. Would have preferred to download it immediately after payment rather than waiting for someone to "process" my order. I was surprised that I had to wait that long.
;
As the only source for this manual it rather rank quite high since it is well scanned and perfectly readable.
;
the manual is in good quality and it's in pdf. manual was send in less then 24h.
regards
mike
;
I would not plug this machine in without finding a manual like this. In addition to setup and normal operating instructions, it has troubleshooting flowcharts, diagrammed mechanical adjustments, and schematics to beat the band. The tech I hand it to would be thrilled to find solder side PCB diagrams with component outlines superimposed, pinouts for every IC chip, and line drawings of transistors, with labeled legs.
As for printing quality, this may be a copy of a copy, but even the finest print when enlarged is very legible. There is a bit of grayed print over a few pages, as if a wet page were placed over it, but the print is still very legible. If you could borrow an original manual and get it printed and bound for 4 to 6 times the cost, you could get better quality. In that case you wouldn't be here. For price, utility, and availability I am rating this manual highly.
CHAPTER 5 TROUBLESHOOTING
D.
Errors
Code Cause � A fault exists in the communication cable between the machine and the copier. � An error exists in the ADF controller PCB. Description � The communication between the machine and the copier was interrupted for 5 sec or more while the machine was in standby. � The communication between the machine and the copier was interrupted for 0.5 sec or more while the machine was in operation. � The clock signals were not generated for 100 msec while the belt motor drive signal was being generated.
E400
E402 E404
� An error exists in the belt motor (M2). � An error exists in the belt motor clock sensor (PI1). � An error exists in the ADF controller PCB. � An error exists in the delivery motor (M5). � An error exists in the delivery motor clock sensor (PI11). � An error exists in the ADF controller PCB. � An error exists in the separation motor (M4). � An error exists in the separation motor clock sensor (PI2). � An error exists in the ADF controller PCB. � An error exists in the pickup motor (M3). � An error exists in the pickup roller height sensor 1 (PI8). � An error exists in the pickup roller height sensor 2 (PI9). � An error exists in the pickup roller home position sensor (PI7). � An error exists in the ADF controller PCB. � The back-up data could not be read, or the data that was read had an error.
� The clock signals were not generated for 200 msec while the delivery motor drive signal was being generated.
E405
� The clock signals were not generated for 200 msec while the separation motor drive signal was being generated.
E410
� The pickup roller height sensors 1 (PI8) and 2 (PI9) did not generate signals within 2 sec after the pickup motor had been driven. � The pickup roller home position sensor (PI7) did not generate signals within 2 sec after the pickup motor had been driven.
E420
� The back-up data could not be read twice when the copier was turned on, or the data which was read had an error.
Table 5-503
COPYRIGHT © 1999 CANON INC.

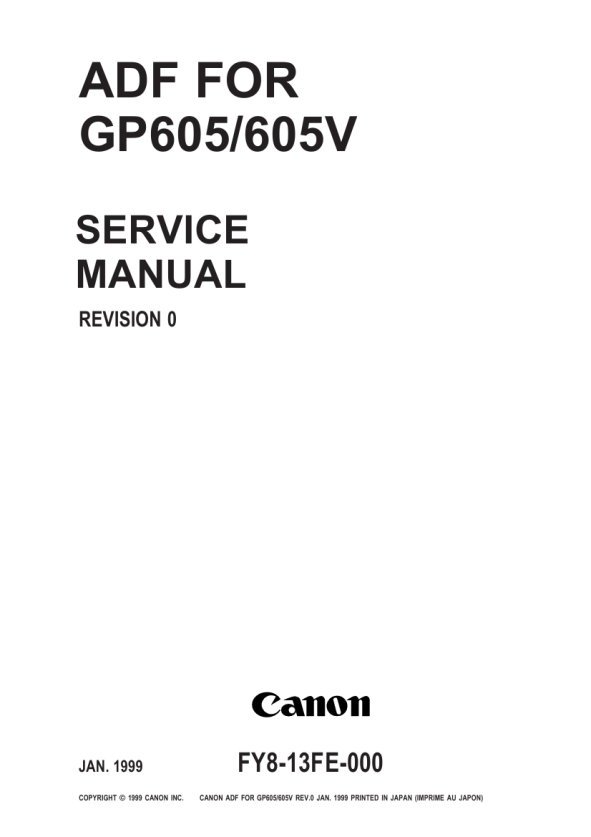

CANON ADF FOR GP605/605V REV.0 JAN. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
5-75
|
|
|
> |
|
