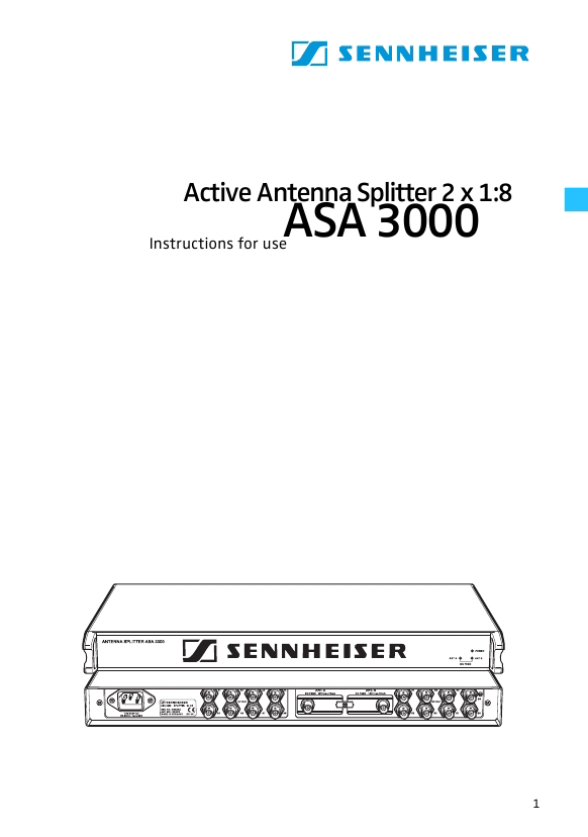

SENNHEISER ASA 3000
Owner's Manual

Putting the unit into operation
Setting up the unit The unit is suitable for use as table top or can be mounted into a rack. Fix the unit to a 19" rack by using the supplied rackmounting kit. To set up the unit on an even, horizontal surface, fix the four self-adhesive plastic feet to the base of the unit. Note: Some furniture surfaces have been treated with varnish, polish or synthetics which might cause stains when they come into contact with other synthetics. Despite a thorough testing of the synthetics used by us, we cannot rule out the possibility of discoloration, since we don�t know your furniture. To protect your furniture, we recommend placing the unit on a non-slip pad. Connecting the antennas You can connect the following antenna types to the BNC sockets and º of the input modules: º ² two GZA 1036 or A 2003-UHF passive antennas or two A 12 active antennas or two GZA 1036 passive antennas with AB 1036 antenna boosters. The ASA 3000 routes the antenna signals without loss to the respective antenna outputs. Notes: The ASA 3000 is delivered with the DC supply voltage for active antennas or antenna boosters turned on. The two LEDs DC FEED ANT A ³ and DC FEED ANT B · light up green. ³ ·
