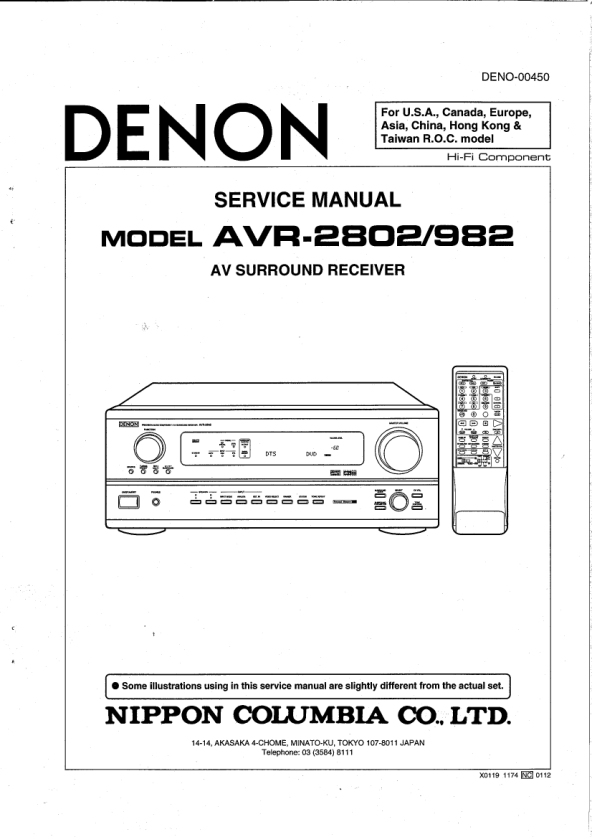

AVR-2802/982
7. Component-Video/S-Video / C-video / Audio & DSP / Ext-in VR / Digital-in / AM FM Tuner Unit
(1) Remove 44 screws to detach the Rear Panel.
Rear Panel
(2) Take off the objective P.W.B. upward.
8. How to Check Power / Control Unit with Power-on
(1) Remove 13 screws ! ,and 4 screws " fixing to the Chassis. (2) Pull up the Unit to separate from the Chassis.
!
!
! " ! "
!
!
