Home >> PIONEER >> AVXMG2027ZF Service Manual

 0 item(s) in your cart

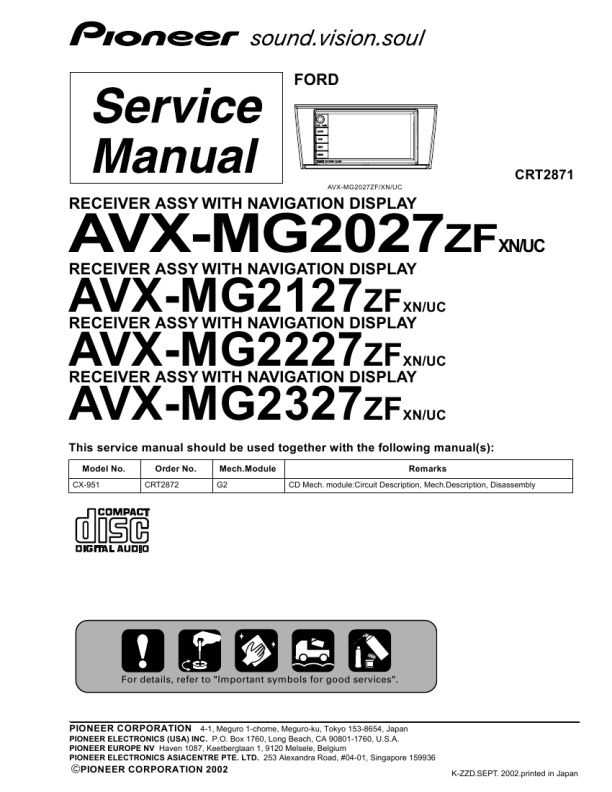

PIONEER AVXMG2027ZF
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of PIONEER AVXMG2027ZF Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 SU-2600 PANASONIC Service Manual by Gottfried Oster;
I am only search for 5 Minute, by it in 5 Minutes to and get ist in few ours! Best i found in the Internet and my Amplifer is repaired as well! Thank you
 AS-970 AKAI Service Manual by shane smith;
Readable text and good copy. Very much needed if you wish to do some repairs on this fine old unit.
 F203RDS PIONEER Service Manual by Bjarne Bak;
Fint forløb med levering af manualen. Kvaliteten af skanningen betegnes som middel
 7284E ALPINE Service Manual by Doug MacDonald;
I found the manual to be clear concise and complete. It was of immense assistance when removing the unit as the unit was over 22 years old and the wiring diagram was unobtainable from the manufacturer. The exploded drawings were clear as were the instructions and labels.
 KM2000 JVC Service Manual by Rashid Ahmad;
I will highly recommend this seller. They are honest, accurate, fast and responsible.

Text excerpt from page 105 (click to view)
5

6

7

8

6.3 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT

� Note : The grating angle of the PU unit cannot be adjusted after the PU unit is changed. The PU unit in the CD mechanism module is adjusted on the production line to match the CD mechanism module and is thus the best adjusted PU unit for the CD mechanism module. Changing the PU unit is thus best considered as a last resort. However, if the PU unit must be changed, the grating should be checked using the procedure below.

A

� Purpose : To check that the grating is within an acceptable range when the PU unit is changed. � Symptoms of Mal-adjustment : If the grating is off by a large amount symptoms such as being unable to close tracking, being unable to perform track search operations, or taking a long time for track searching. � Method : � Measuring Equipment � Measuring Points � Disc � Mode

� Oscilloscope, Two L.P.F. � E, F, REFO � ABEX TCD-784 � TEST MODE

B
CONTROL UNIT(G2F)
L.P.F. E REFO 100k� 390pF Xch Ych

Oscilloscope

E F
F REFO L.P.F. 100k� 390pF

REFO

� Checking Procedure 1. In test mode, load the disc and switch the 5V regulator on. 2. Using the TRACK UP and TRACK DOWN buttons, move the PU unit to the innermost track. 3. Press key RANDOM to close focus, the display should read "91". Press key FF to implement the tracking balance adjustment the display should now read "81". Press key RANDOM 4 times. The display will change, returning to "81" on the fourth press. 4. As shown in the diagram above, monitor the LPF outputs using the oscilloscope and check that the phase difference is within 75° . Refer to the photographs supplied to determine the phase angle. 5. If the phase difference is determined to be greater than 75° try changing the PU unit to see if there is any improvement. If, after trying this a number of times, the grating angle does not become less than 75° then the mechanism should be judged to be at fault. � Note Because of eccentricity in the disc and a slight misalignment of the clamping center the grating waveform may be seen to "wobble" ( the phase difference changes as the disc rotates). The angle specified above indicates the average angle. � Hint Reloading the disc changes the clamp position and may decrease the "wobble".

C

D

AVX-MG2027ZF/XN/UC
5 6 7 8

105
