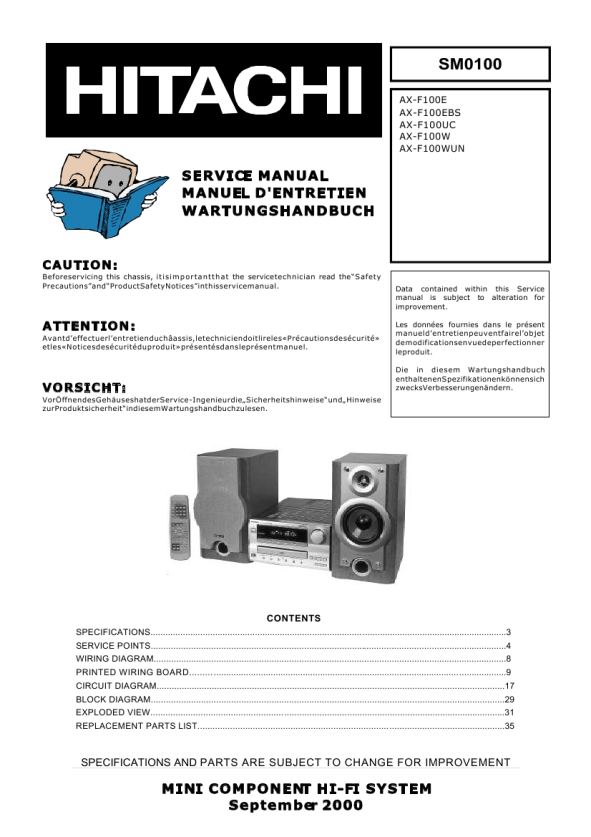

AX-F100
SERVICE
POINTS
1 Removal of Top Cover . (1) Remove 4 screws 1 from each side. (2) Remove 4 screws 2 from the rear plate.
Top cover
1
1
2
Fig.1 2 Removal of Rear Plate and Power Cord . (1) Remove 11 screws 3 and 4 from the rear plate. (2) Detach the power cord.
1
3 4
4
2 9 7
5
10
6 8
3
11
3 Removal of Tuner P.W.B Board . (1) Remove 2 screws 5. (2) Pull the tuner P.W.B gently to detach from connector A of the main PCB.
Power cord
Fig.2
5
Connector A
Fig.3 �4�
|
