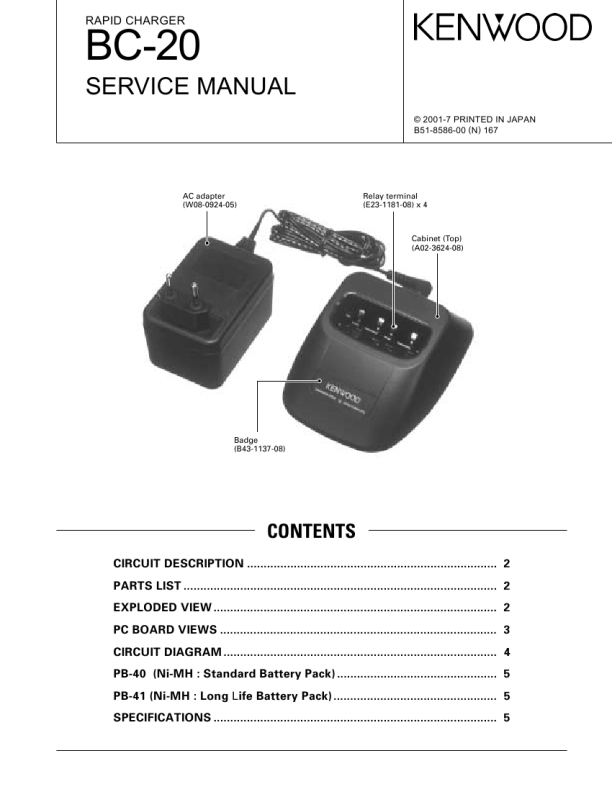

RAPID CHARGER
BC-20
SERVICE MANUAL
© 2001-7 PRINTED IN JAPAN B51-8586-00 (N) 167
AC adapter (W08-0924-05)
Relay terminal (E23-1181-08) x 4
Cabinet (Top) (A02-3624-08)
Badge (B43-1137-08)
CONTENTS
CIRCUIT DESCRIPTION ........................................................................... 2 PARTS LIST .............................................................................................. 2 EXPLODED VIEW ..................................................................................... 2 PC BOARD VIEWS ................................................................................... 3 CIRCUIT DIAGRAM .................................................................................. 4 PB-40 (Ni-MH : Standard Battery Pack) ................................................ 5 PB-41 (Ni-MH : Long Life Battery Pack) ................................................. 5 SPECIFICATIONS ..................................................................................... 5
|
|
|
> |
|
