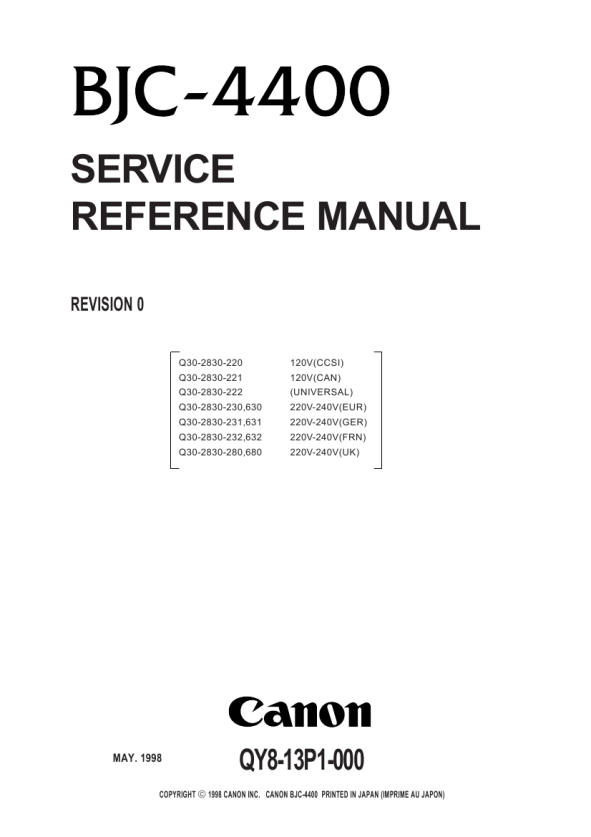

BJC-4400
7 Name of the Parts and Their Functions
The different parts of the printer and their functions are shown below.
Part 3: Operating Instructions
Paper Support Supports the stack of paper loaded in the cut sheet feeder. Cut Sheet Feeder Holds a stack of approximately 100 cut sheets (64g/cm ) for automatic feeding.
2
Paper Guide Aligns the cut sheets in the cut sheet feeder according to the paper size. A maximum paper width of 241 mm (9.64 in.) can be set. Autofeeds banner paper and scanning document. Control Panel See the next page. Front Cover Open to install or remove the cartridge, set the paper thickness lever, or remove the jams paper. Paper Output Tray Pulls out to receive the printed sheets. Manual Feeding Slot Use for feeding media manually. AC Adapter Installed on the rear of the printer, the AC adapter supplies power from the power outlet to the printer. Depending on the location of purchase, the power cable is permanently attached to the AC adapter where as in some areas the power cable is detachable. Parallel Interface Connector Connects the printer to the parallel port on the computer.
Figure 3-13 Name of the Parts and Their Functions
3-11
|
|
|
> |
|
