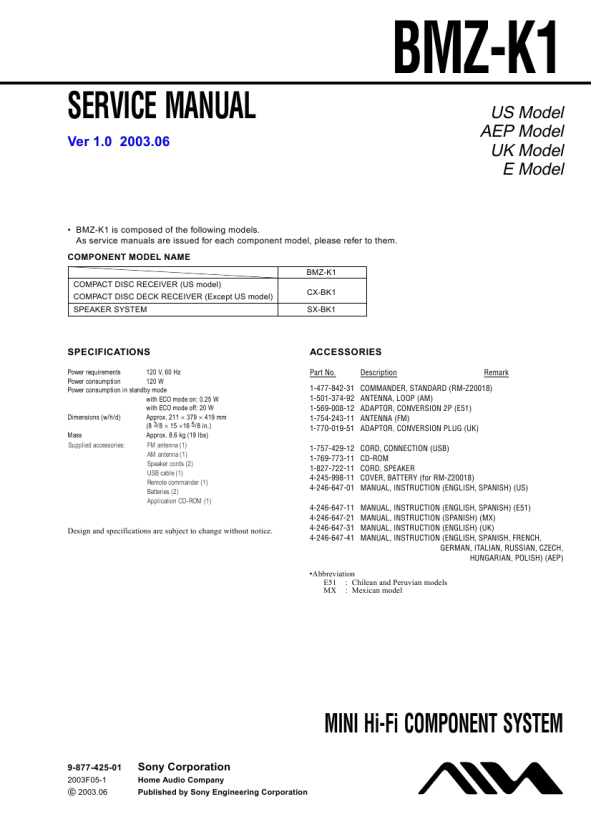

BMZ-K1
SERVICE MANUAL
Ver 1.0 2003.06
US Model AEP Model UK Model E Model
� BMZ-K1 is composed of the following models. As service manuals are issued for each component model, please refer to them. COMPONENT MODEL NAME
BMZ-K1 COMPACT DISC RECEIVER (US model) COMPACT DISC DECK RECEIVER (Except US model) SPEAKER SYSTEM CX-BK1 SX-BK1
SPECIFICATIONS
Power requirements 120 V, 60 Hz Power consumption 120 W Power consumption in standby mode with ECO mode on: 0.25 W with ECO mode off: 20 W Dimensions (w/h/d) Approx. 211 � 379 � 419 mm (8 3/8 � 15 �16 5/8 in.) Mass Approx. 8.6 kg ( lbs) pp g (19 ) Supplied accessories: FM antenna (1) AM antenna (1) Speaker cords (2) USB cable (1) Remote commander (1) Batteries (2) Application CD-ROM (1)
ACCESSORIES
Part No. 1-477-842-31 1-501-374-92 1-569-008-12 1-754-243-11 1-770-019-51 Description Remark
COMMANDER, STANDARD (RM-Z20018) ANTENNA, LOOP (AM) ADAPTOR, CONVERSION 2P (E51) ANTENNA (FM) ADAPTOR, CONVERSION PLUG (UK)
1-757-429-12 CORD, CONNECTION (USB) 1-769-773-11 1-827-722-11 4-245-998-11 4-246-647-01 4-246-647-11 4-246-647-21 4-246-647-31 4-246-647-41 CD-ROM CORD, SPEAKER COVER, BATTERY (for RM-Z20018) MANUAL, INSTRUCTION (ENGLISH, SPANISH) (US) MANUAL, INSTRUCTION (ENGLISH, SPANISH) (E51) MANUAL, INSTRUCTION (SPANISH) (MX) MANUAL, INSTRUCTION (ENGLISH) (UK) MANUAL, INSTRUCTION (ENGLISH, SPANISH, FRENCH, GERMAN, ITALIAN, RUSSIAN, CZECH, HUNGARIAN, POLISH) (AEP)
Design and specifications are subject to change without notice.
�Abbreviation E51 : Chilean and Peruvian models MX : Mexican model
MINI Hi-Fi COMPONENT SYSTEM
9-877-425-01
2003F05-1 C 2003.06
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
