3-1. Setup Menu
DISPLAY switch ON : Displays characters and messages indicating the video camera settings and operation status. OFF : No character or marker display appears on the viewfinder screen. MENU : The setup menu appears on the viewfinder screen. MENU SELECT knob Selects the menu item or setting value displayed on the viewfinder screen. MENU SELECT switch ENTER : Enters the page/item select mode, or enters the setting values. CANCEL : Cancels the contents of a menu setting, or returns to the page select mode or TOP menu. n The TOP menu screen indicates the entire configuration of menu items. To display the TOP menu, set the DISPLAY switch to MENU (from OFF) while pushing up the MENU SELECT switch to ENTER. � Basic Operation
1. Displaying the menu To display the Operation menu, set the DISPLAY switch to MENU. To display the other menus than the Operation menu, first of all, the TOP menu shall be displayed. To display the TOP menu, set the DISPLAY switch to MENU while pushing up the MENU SELECT switch to ENTER. Then turn the MENU SELECT knob to move the cursor to a menu item which you want and push up the MENU SELECT switch to ENTER. 2. To shift the page, turn the MENU SELECT knob with a page scroll bar displayed at the top-right of the screen until the desired page is displayed and push up the MENU SELECT switch to ENTER. The menu enters the item select mode and the page scroll bar disappears. 3. To shift the item, turn the MENU SELECT knob until the � cursor points the item to be set and push up the MENU SELECT switch to ENTER. 4. To change the value, turn the MENU SELECT knob. You can change the values quickly by turning the MENU SELECT knob fast. You can make very fine adjustments by turning the switch slowly. By pushing up the MENU SELECT switch to ENTER, the setting is entered. 5 The menu page is returned to the item select mode or page select mode every time the MENU SELECT switch is pushed down to CANCEL. 6. To exit from the setup menu, set the DISPLAY switch to OFF. � ROM version Contents in the menu and factory settings may differ from the descriptions in this manual depending on the version of ROM on the AT-95 board.
3-2

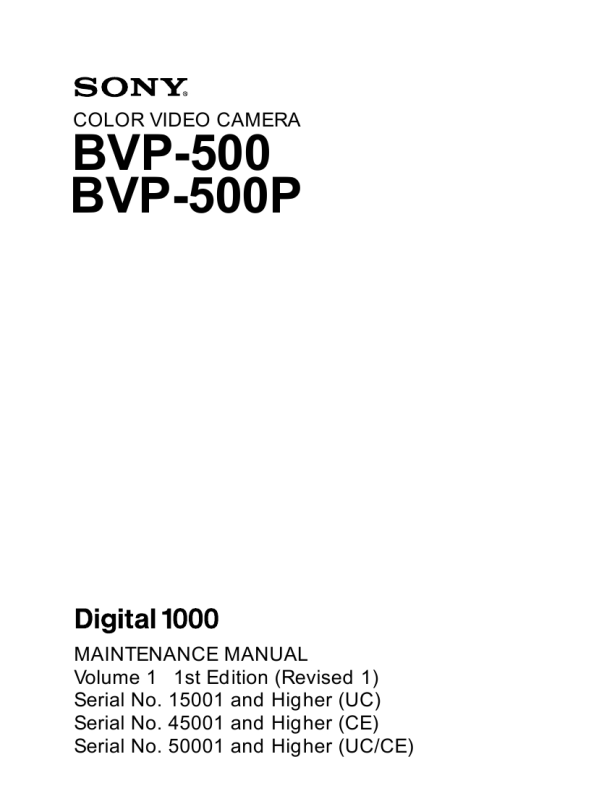

BVP-500 BVP-500P
|
|
|
> |
|
