2-10. Replacing Boards
2-10. Replacing Boards
2-10-1. Replacing DM-97 Board
1. 2. 3. 4. 5. Open the left side panel referring to Section 2-1. Disconnect the connector CN33 on the DM-97 board. Disconnect the three connectors CN25, CN28 and CN29 on the MB-764 board. Disconnect the connector CN2 from the LF box assembly. Remove the three screws to remove the DM-97 board.
LF box assembly CN25 CN28 CN33 CN2
Black Red Blue CN29 B3 x 6(with washer) DM-97 board
B3 x 6 (with washer)
B3 x 6(with washer)
6. Install a new DM-97 board in the reverse order of removal.

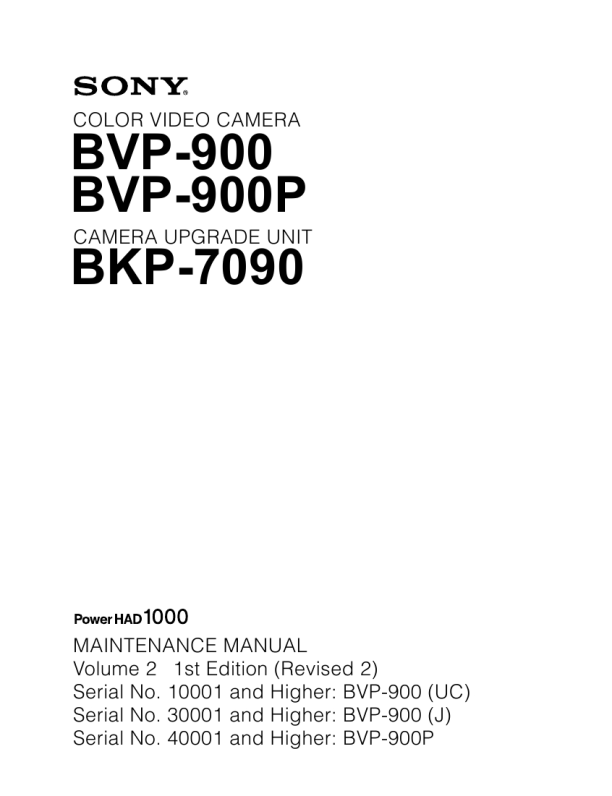

BVP-900 BVP-900P
2-17
|
|
|
> |
|
