DISASSEMBLY INSTRUCTIONS
1. Remove machine screws M 4.0 x 6.0 ( 1 to 4 ) from the side panels. Remove tapping screw 3.0 x 8.5 ( 5 ) from the back panel. Refer to Figure No.1.
4 5
3
2
Figure No.1
1
2. Pull both sides of the TOP COVER slightly outwards 6 and tilt approx. 35� and then remove in the direction as indicated by the arrow 7 . Refer to Figure No.2.
6
7
6
Figure No.2.
6

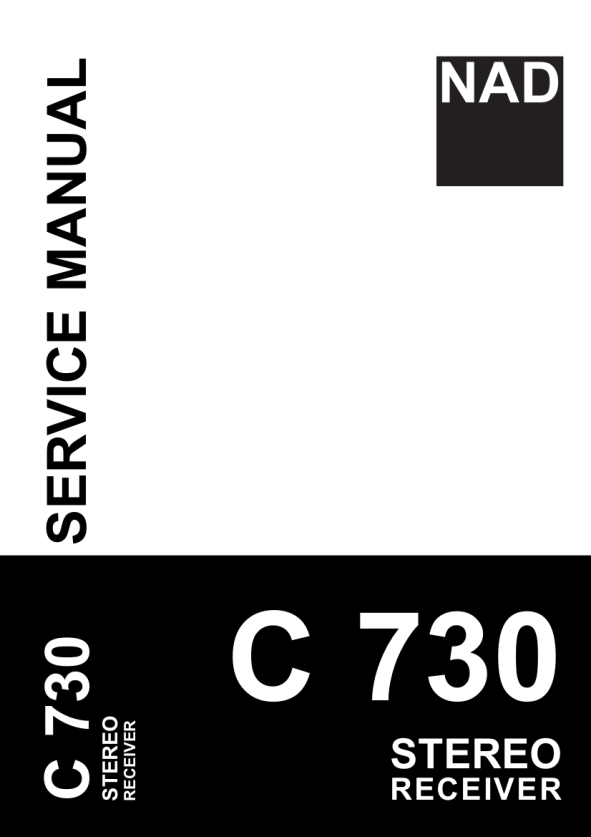

 $4.99 C730 NAD
