Home >> AIWA >> CADW237 Service Manual

 0 item(s) in your cart

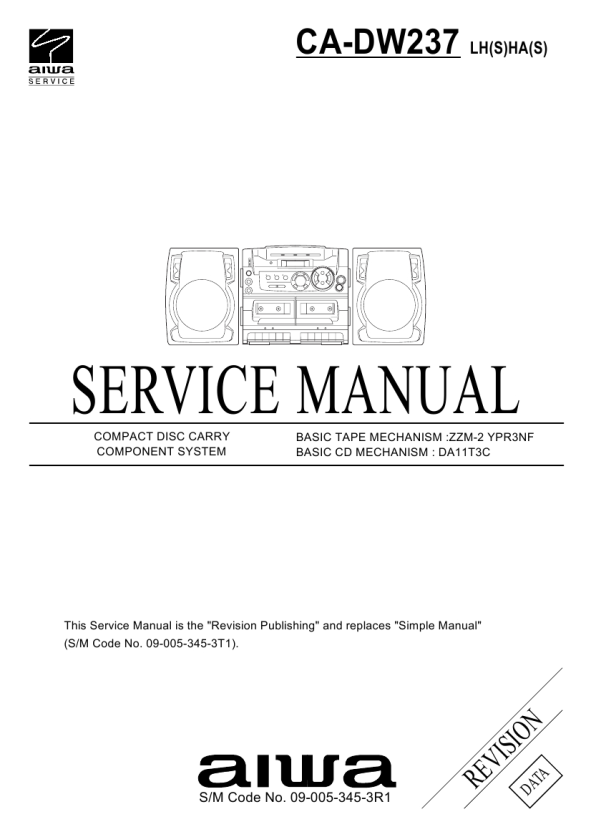

AIWA CADW237
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA CADW237 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CCU-700AP VOLUME1 SONY Service Manual by Ralf Made;
Super Anleitung. Ordentliche Auflösung. Das ganze noch in Deutsch wäre zu schön. Alle Datenblätter sind sauber Kopiert und alle Leitungswege sind sauber ausgeführt
 PVW2650P VOLUME 1 SONY Service Manual by Artur Łukasik;
Thanks God for the internet and thanks for the service like this - proffessional solution on time.
 3681 ALPINE Service Manual by Luís Visentin;
About the service it's very fast and reliable. About the manual the quality is high enough to read even the tiniest details on the wiring diagrams so you can't ask much more than that, let it alone for a manual of a product from 20 years ago. Thank you, very satisfied.
 A-1200P SANSUI Service Manual by Brian Smith;
The downloaded quality was as good as the orignial
 GF8585HB SHARP Service Manual by Herbert de Groot;
This is a great and complete Service Manual for the Sharp GF8585HB. Giving full and detailed technical insight. Good to find these manuals online.

Text excerpt from page 14 (click to view)
ELECTRICAL ADJUSTMENT
< TUNER SECTION >
1. AM Freq. Range Adjustment L006 ....................................................................... 517kHz TC003 ................................................................... 1750kHz 2. AM Tracking Adjustment L003 ....................................................................... 600kHz TC004 ................................................................... 1400kHz 3. AM IF Adjustment Settings:

PRACTICAL SERVICE FIGURE
< TUNER SECTION >
< FM SECTION >
Sensitivity: (THD 3%) Signal to Noise Ratio: (Input 54dB) Distortion: (Input 54dB) Intermediate frequency: Stereo separation: Less than19dB (88.0MHz) Less than19dB (98.0MHz) Less than19dB (108.0MHz) More than 50dB (at 98.0MHz) Less than 2.3% (at 98.0MHz) 10.7MHz ±0.3MHz More than 18dB

FRONTC.B

MAINC.B
L007 L008

6 5
L003
0

3
IC001 L009 19 TC1 TC2 L006 TC3 TC4 PVC001

7 1

4
0 0 5 L

Method:

� Test point: IC001 (L81828) 19PIN � Adjustment location: L007 Adjust L007 so that the output level at 1000kHz becomes maximum.

< AM SECTION >
Sensitivity: (S/N 10dB) Distortion: (Input 74dB) Intermediate frequency: Less than 48dB (at 600kHz) Less than 48dB (at 1000kHz) Less than 48dB (at 1400kHz) Less than 1.5% 455kHz±5kHz

2

4. FM Freq. Range Adjustment L005 ..................................................................... 87.0MHz TC001 ................................................................. 109.0MHz 5. FM Tracking Adjustment L004 ..................................................................... 90.0MHz TC002 ................................................................. 108.0MHz 6. FM IF Adjustment Settings: � Test point: IC001 (L81828) 19PIN � Adjustment location: L008 Method: Adjust L008 so that the output level at 98.0MHz becomes balanced. 7. FM Balance Adjustment Settings: � Test point: IC001 (L81828) 19PIN � Adjustment location: L009 Method: Adjust L009 so that the output level at 98.0MHz becomes balanced.

2

< CASSETTE SECTION >
Tape speed: Wow & flutter: Take-up torque: FF torque: Rew torque: Back tension: S/N ratio: Distortion: Noise (PB): Erasing Ratio: (AC W/O FILTER) 3000Hz±90Hz Less than 0.35% (JIS RMS) 30-60g-cm (DECK 1/2) 55-140g-cm (DECK 1/2) 55-140g-cm (DECK 1/2) 1-5g-cm More than 37dB Less than 3.0% (PB) Less than 1mV (AC/DC, MIN) More than 36dB

L 0 4

< TAPE SECTION >
L330 8. Tape speed Adjustment Settings: � Test tape: TTA-100 � Test point: J251 (PHONES jack) � Adjustment location: SFR761 Play back the test tape and adjust SFR761 so that the frequency counter reads 3000Hz ±5Hz.

0

Method:

J251 PHONES SFR761

98

8

9. Head Azimuth Adjustment Settings: � Test tape: TTA-320 � Test point: J251 (PHONES jack) � Adjustment location: Azimuth adjustment screw. Method: Play back the 8kHz signal of the test tape and adjust screw so that the output becomes maximum. 10. Bias frequency Adjustment L330 ............................................................. 56kHz ±2kHz

RPH (DECK1)/PH (DECK2)

9

21

22
