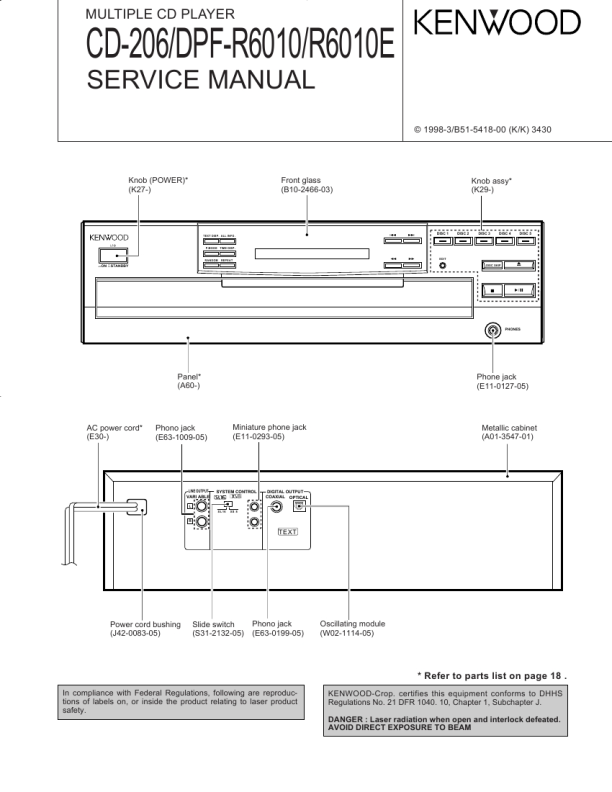

CD-206/DPF-R6010/R6010E
SPECIFICATIONS
CD-206/DPF-R6010
[ Format ] System .......................... Compact disc digital audio system Laser ...................................................... Semiconductor laser [ D/A Convertors ] D/A Conversion ........................................... 1 Bit (D.R.I.V.E.) Oversampling ................................................. 8 fs (352.8 kHz) [ Audio ] Frequency response .......................... 4 Hz � 20 kHz, ±0.5 dB Signal to noise ratio ................................. More than 100 dB Dynamic range ............................................ More than 95 dB Total harmonic distortion + noise .............................................. Less than 0.005% (at 1 kHz) Wow & flutter ....................................... Unmeasurable Limit Output level/impedance Variable ............................................... (Max.) 2 V/0.3 k� Digital output Coaxial .................................................... 0.5 V p-p / 75 � Optical ........................................... �15 dBm � �21 dBm (Wave length 660 nm) Headphone output (Max.) .............................. 20 mW (32 �) [ General ] Power consumption ....................................................... 14 W Dimensions ......................................... W : 440 mm (17-5/16") H : 125 mm (4-15/16") D : 397 mm (15-5/8") Weight (Net) .................................................... 5.0 kg (11.0 lb)
Notes
1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. 2. The full performance may not be exhibited in an extremely cold location (under a water-freezing temperature).
Note: Component and circuit are subject to modification to insure best operation under differing local conditions. This manual is based on Europe (E) standard, and provides information on regional circuit modification through use of alternate schematic diagrams, and information on regional component variations through use of parts list.
