Checking the XM Radio ID Number

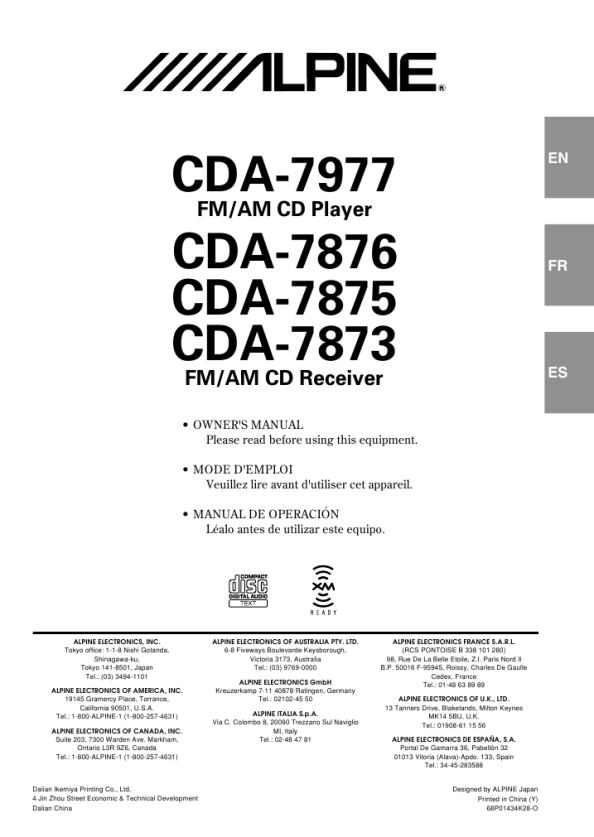

You need to provide XM with the unique XM Radio ID number for your XM Radio Receiver in order to subscribe to XM's programming. This number is an 8 character alphanumeric number that is printed on a label directly on the XM Receiver. It can also be displayed on the screen of the CDA7977/CDA-7876/CDA-7875/CDA-7873 in the following way.
Storing XM Channel Presets
1 2
Press the BAND button to select the desired band (XM1 or XM2) you want to store. After tuning in the desired channel, press and hold any one of the Preset buttons (1 through 6) for at least 2 seconds until the channel number on the display blinks. Press the Preset button into which you wish to store the channel while the channel number display is blinking (within 5 seconds). The display stops blinking once the channel has been memorized. The display shows the band, preset No. with a triangle (9) and channel number memorized. Repeat the procedure to store up to 5 other channels onto the same band. To use this procedure for other bands, simply select the band desired and repeat the procedure. A total of 12 channels can be stored in the preset memory (6 channels for each band; XM1 and XM2).
NOTE If you store a channel in a preset memory which already has a station, the current channel will be cleared and replaced with the new one.
3
1 2 3
While receiving XM1/XM2, press the g DN or f UP button to select channel �0.� The unit alternately displays �RADIO ID� for 2 seconds, then the ID number for 10 seconds. To cancel the ID number display, set the channel to other than �0.�
NOTE There is another way to display your ID number.
1. Press and hold the SETUP button for at least 3 seconds. 2. Press the f UP button repeatedly to select �ID.� Each press of the f UP button changes the modes as shown:
4
� NORMAL/HI-FI � AMBER* � DIM � SUB ID � DEMO � AUX � SCR � MUTE �BEEP � * CDA-7876 only
If you press the g DN button the display scrolls in reverse sequence. 3. Press the TUNE button to display your ID number. 4. After checking your ID number, press the SETUP button to return to the normal display.
Receiving Stored XM Channels
1
Press the BAND button to select the desired band (XM1 or XM2). � FM1 � FM2 � XM1 � XM2 � AM
2
Press the channel Preset button that has your desired satellite channel in memory.
21-EN
|
|
|
> |
|
