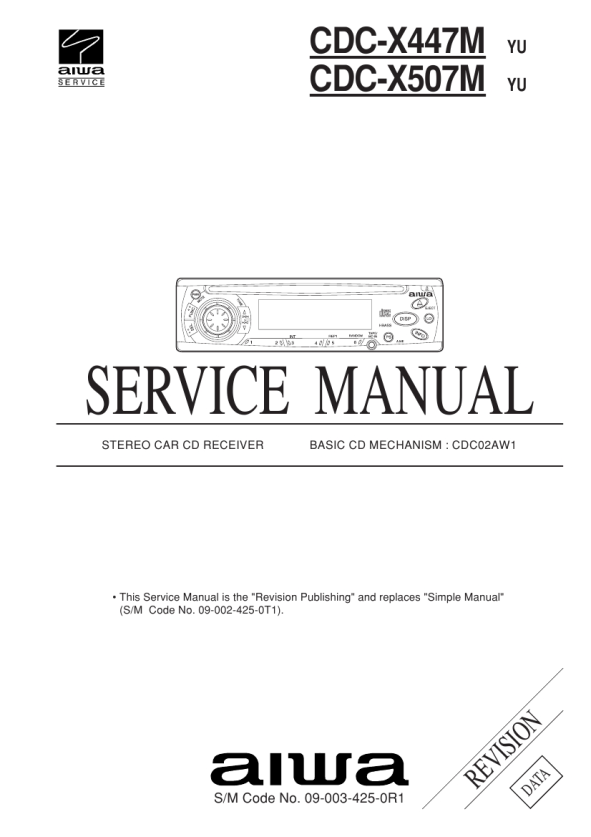

AIWA CDCX447
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA CDCX447 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 VP-5030 SONY Service Manual by Dominic Bode;
Good scan of the original service manual. All schematics and adjustment procedures are there. It helped me to fix a long lasting problem with the tracking circuitry. The manual also includes the supplementals 1,2 and 3. Included are; electrical schematic's , pcb layout's, mechanical drawing's and exploded views, disassembly manual and maintenance procedures. 236 pages.
 OEV-143 SONY Service Manual by FREDDY JATIVA;
The Service Manual received was helpful. The electronic information is exactly what I needed. I recomend all of my friends about this technical page.
 PMC100 PHILIPS Service Manual by Nils Thei;
High quality scan of service manual. I am satisfied!
 ATA301/L AKAI Service Manual by Jorn Peder Wind;
Excellent copies. I will use "Owner Manual" again a second time.
 SLD303/K TECHNICS Service Manual by Stefano Erdini;
Very good manual for Technics SL 303. Manuale molto utile.

Text excerpt from page 29 (click to view)
3. CD test mode functions Mode Start Mode Operation Key LCD Display All LCD light up Operation Contents Activate test mode • All servo off Load / Unload All LCD light up Chucking • Laser on • VCC on

• Continual focus search (The pickup lens repeat the Search Mode RANDOM full-swing) * NOTE 1 • TOC reading Play Mode REPEAT 1 • Display Track No. and Play time • Display Level/Ing. Traverse Mode Stop Mode INT REPEAT • Display Track No. and Play time All LCD light up • Normal playback • Same operation as search mode if TOC cannot be read Playback pause status Wait status • Focus servo • Tracking servo • CLV servo • SLED servo Tracking servo off • All servo off • Laser on/off • Sled servo • Check mechanism operation • Pickup moves to inner track • Check APC circuit • Laser current measurement • Check focus error waveform

• Pickup moves to outer track Sled Mode All LCD light up

• Do not insert the CD disc when checking the search mode. • Press the REPEAT key to release each mode. * NOTE 1 : There is a case that the CD cannot be operated owing to the protection circuit being operated when heat builds up in the driver IC if the focus search is opereated continually for more than 10 minutes. In this case, the power supply should be switched off for 10 minutes until the heat has been reduced and then re-start.

– 29 –
