CAUTION WHEN SERVICING
(1) Using extension jigs When the function of CD mechanism (TN-CCD1001Z-152J) is checked, connect between MAIN P.W.B and CD mechanism with the extension jigs.
BKC-JIG(1)
13 26 1 14 14 26 1 13 BKC-JIG(2)
MAIN P.W.B
CD Mechanism
Bottom View
Extension jig
� As the connection connector has no polar directions, check the direction of the circuit board (BKC-JIG1/2) when installing. (Refer to the PIN number in the above photo.) Parts name JIG-BKC Parts number SV-J00-106-010
�4�

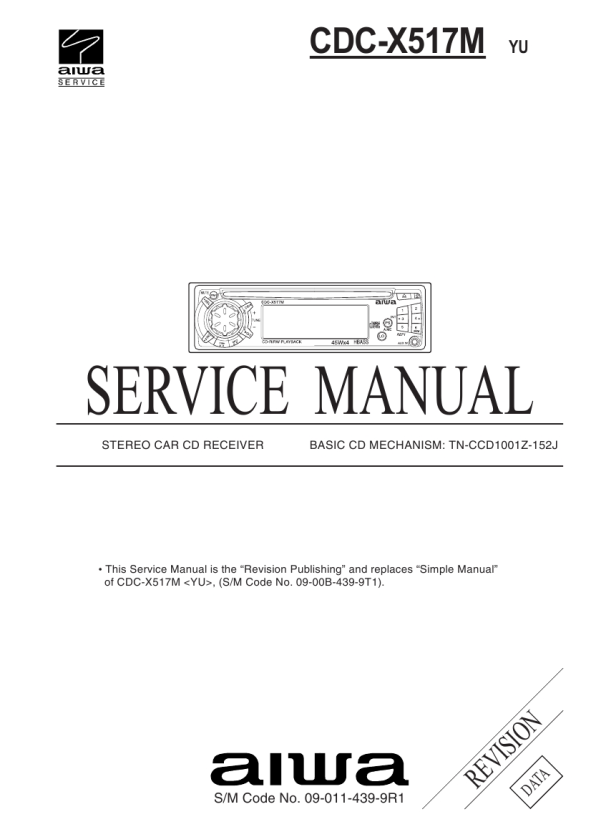

 $4.99 CDCX517 AIWA
