BASIC OPERATION, AUDIO AND CLOCK ADJUSTMENT
PWR/MUTE SEL AUDIO CONTROL
1 Press SEL repeatedly to select the mode to be
adjusted. Pressing SEL cycles through the modes. The selected mode�s indicator flashes. 2 Turn AUDIO CONTROL to increase/decrease the level or to select on/off for the selected mode.
Note
Adjust the level or select on/off within 5 seconds, or the selected mode will return to previous state.
Aligning the source levels
(Source Level Adjuster)
i/k DISP SRC BAND
Volume may vary each time you change the source mode. In this case, you can align each source mode�s volume to almost the same level. 1 Press SRC or BAND repeatedly to select the desired mode. 2 Press DISP while pressing SEL. �LA 0� appears in the display. 3 Turn AUDIO CONTROL to adjust the level.
Turning the unit on/off
� Press PWR/MUTE to turn on the unit. The unit also turns on when you insert a CD. � Press and hold PWR/MUTE until the unit turns off.
Note
Most operations described in this manual require the unit to be turned on before starting the operation, unless explicitly stated otherwise.
Note
Adjust the level within 5 seconds, or the selected mode will be canceled.
Changing the source mode
1 Press SRC.
Pressing SRC cycles through source modes in the following order:
Restoring the factory settings
1 Turn off the unit. 2 Press and hold DISP until �LA --� appears in the
display.
FM1 (FM2/FM3/AM1/AM2) � CD* � AUX �
* �CD� does not appear in the display when there is no CD in the unit.
Note
You can restore the factory settings only for VOL, BASS, TRE, BAL, FAD, and H-BASS, and aligned source volume levels.
Adjusting the volume
1 Turn AUDIO CONTROL.
VOL (volume) indicator flashes.
Muting button beep sounds
ENGLISH
1 Turn off the unit. 2 Press and hold SEL until �bEEP� appears in the
display. 3 Turn AUDIO CONTROL to select on (level indicators appear) or off (level indicators disappear).
Muting the sound
1 Press PWR/MUTE briefly.
MUTE indicator flashes. To restore volume, briefly press PWR/MUTE again.
4 Press SEL.
Adjusting sound
You can select the following modes for adjusting sound depending on the music you listen to: BASS (low frequencies), TRE (high frequencies), BAL (left/right), FAD (front/ rear) and H-BASS (high bass).
ENGLISH
2

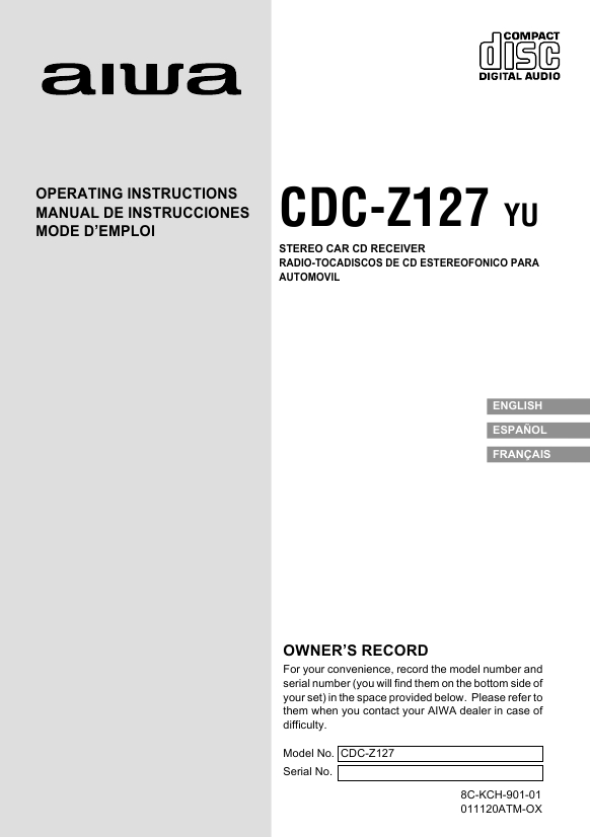

 $4.99 CDCZ127 AIWA
