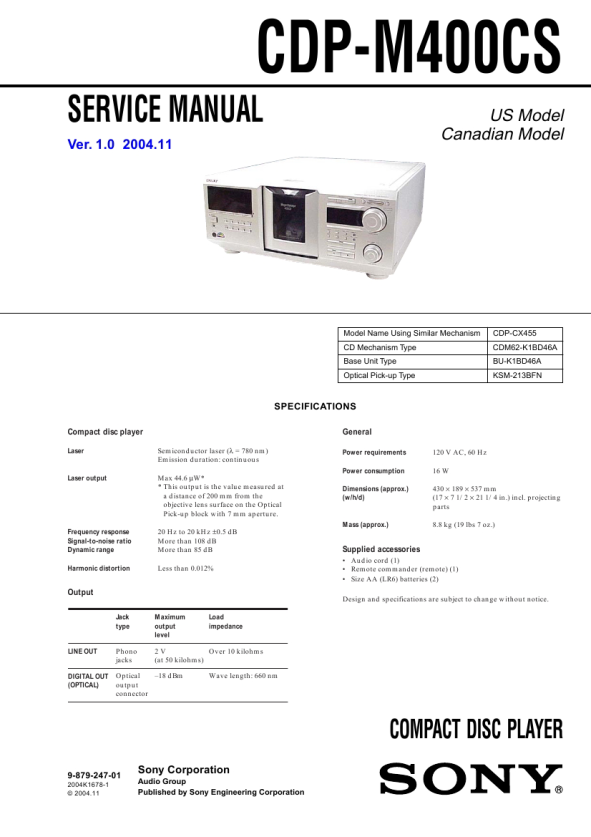

CDP-M400CS
ADJ Mode 1. Turn ON the power of the unit, set disc to disc table, and perform chucking. 2. Disconnect the power supply plug from the outlet. 3. To set ADJ mode, connect the test point (ADJ) of the MAIN board to Ground, and connect the power supply plug to the outlet. In this mode, table rotation and loading operations are not performed because it is taken that the disc has already been chucked. Note: The same operations are also performed in the following when the test point (ADJ) is connected to Ground after turning on the power. � Direct search (movement of sledding motor) is not performed during accessing � Ignored even when GFS becomes L � Ignored even when the Q data cannot be read � Focus gain does not decrease To end the ADJ mode 1. Press the 1/u button and disconnect the plug. 2. Remove the wire between ADJ and GND.
Key and Display Check Mode To set this mode, connect the test point (AFADJ) on the MAIN board to Ground, and connect the power supply plug to the outlet. Note: When this mode is executed, all title memos recorded will be erased. � When this button is pressed, �line # No. #� will be displayed. However, these will not be displayed for the following special buttons. However, these will not be displayed for the following special buttons. x (stop) button: FL segment check (Refer to FL Tube Check Patterns) P (pause) button: FL grid check (Refer to FL Tube Check Patterns) The P LED also lights up simultaneously. · (play) button: All FL segment and grid will light up. · LED also lights up simultaneously. TIMER switch: When the switch position is PLAY , the STANDBY LED lights up. It goes OFF when set to OFF . Each time this button is pressed, the value of the �Got ## keys� increases. Buttons pressed once will not be counted when pressed again. FL Tube Check Patterns Segment check
Magnified
Grid check
A
B
C
D
E
F
G
� When the jog dial and AMS is rotated to the right, the TOP ARTIST LEDs light up in the order of 8 n 7..1 n HISTORY ALBUM SELECT n MEGA CONTROL n X n H n ARTIST MODE n 8. � When the jog dial and AMS is rotated to the left, the TOP ARTIST LEDs light up in the order of 1 n 2..8 n ARTIST MODE n H n X n MEGA CONTROL ALBUM SELECT n HISTORY n 1. � Abbreviation FL: Fluorescent Indicator Tube To end the ADJ mode 1. Disconnect the plug. 2. Remove the wire between AFADJ and GND. Adjustment Location: MAIN board (See page 28)
24
|
|
|
> |
|
