USING THE RECORDER
The numbers between parentheses refer to the fold-out.
ENGLISH
Switching ON and OFF
1 Plug the power cord supplied into the AC IN socket on the CD-Recorder, then into a AC power outlet.
Inserting discs
MODEL NO.CDR631
MADE IN JAPAN
AC IN IN
OUT
1
q
2 Press the POWER (1) button on the front of the CD-Recorder to turn it on or off.
CD RECORDER CDR631
Press / (6) to open the disc tray. Â lights up. Insert a CD, CD-R or CD-RW in the appropriate recess in the tray, label side up. Press / (6) to close the tray. Â lights up, followed by and the display will show the type of disc you inserted.
2
3
IR
Recordable
ReWritable
STANDBY
POWER
HEADPHONE
LEVEL
0
10
w
Note:
When the power is switched ON, the STANDBY function on the remote control (66) allows the CDR631 to be turned OFF except for the IR receiever circuit that will wait for the standby signal to turn power back on.
� �
If a CD-R(W) is finalized it will show CD on the display. If CD-text is available the TITLE/ARTIST will scroll by.
Using the remote control
1 2 Open the battery compartment cover. Insert 2 batteries (AA, LR-6 or UM-3; as supplied) as shown. 3 Replace the cover.
Notes:
- For recording it is important that the blank disc is completely free from dust particles or scratches. (see Compact Discs Care, page 2). - If you insert a blank or partly-recorded CD-R/RW or an unfinalized CD-R/RW, the CD-Recorder will calibrate the disc for optimum recording. During this process the display will first show and then the number of audio tracks. Calibration can take up to 30 seconds.
Note:
We recommend you use 2 batteries of the same type and condition. This remote control can switch �STANDBY ON/OFF� but cannot switch �POWER ON/OFF� on the CD-Recorder. Batteries contain chemical substances, so they should be disposed of properly. 8

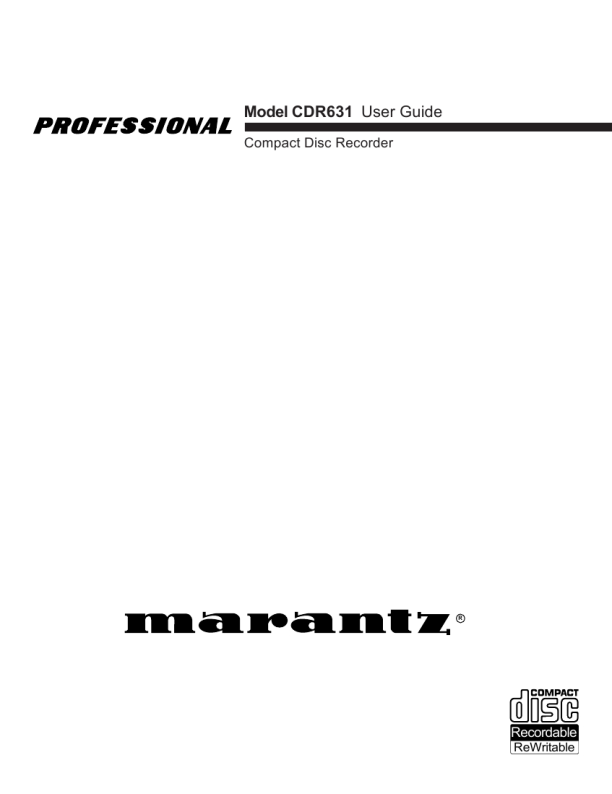

 $4.99 CDR631 MARANTZ
User Guide It's a complete guide ( also known as operating manual or owner's manual), and it's in PDF format. A…
|
|
|
> |
|
