Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Published by Service Dept. 298-6053-00 Feb.2003B Printed in Japan

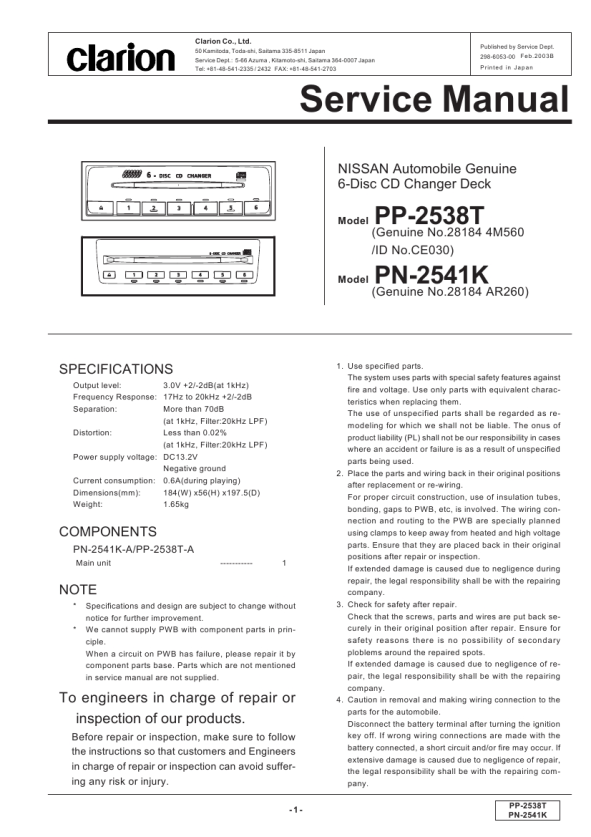

Service Manual
NISSAN Automobile Genuine 6-Disc CD Changer Deck
PP-2538T
Model
PP-2538T 4M560 (Genuine No.28184
/ID No.CE030)
Model
PN-2541K
PN-2541KAR260) (Genuine No.28184
SPECIFICATIONS
Output level: 3.0V +2/-2dB(at 1kHz) Frequency Response: 17Hz to 20kHz +2/-2dB Separation: More than 70dB (at 1kHz, Filter:20kHz LPF) Distortion: Less than 0.02% (at 1kHz, Filter:20kHz LPF) Power supply voltage: DC13.2V Negative ground Current consumption: 0.6A(during playing) Dimensions(mm): 184(W) x56(H) x197.5(D) Weight: 1.65kg
COMPONENTS
PN-2541K-A/PP-2538T-A
Main unit ----------1
NOTE
* * Specifications and design are subject to change without notice for further improvement. We cannot supply PWB with component parts in principle. When a circuit on PWB has failure, please repair it by component parts base. Parts which are not mentioned in service manual are not supplied.
1. Use specified parts. The system uses parts with special safety features against fire and voltage. Use only parts with equivalent characteristics when replacing them. The use of unspecified parts shall be regarded as remodeling for which we shall not be liable. The onus of product liability (PL) shall not be our responsibility in cases where an accident or failure is as a result of unspecified parts being used. 2. Place the parts and wiring back in their original positions after replacement or re-wiring. For proper circuit construction, use of insulation tubes, bonding, gaps to PWB, etc, is involved. The wiring connection and routing to the PWB are specially planned using clamps to keep away from heated and high voltage parts. Ensure that they are placed back in their original positions after repair or inspection. If extended damage is caused due to negligence during repair, the legal responsibility shall be with the repairing company. 3. Check for safety after repair. Check that the screws, parts and wires are put back securely in their original position after repair. Ensure for safety reasons there is no possibility of secondary ploblems around the repaired spots. If extended damage is caused due to negligence of repair, the legal responsibility shall be with the repairing company. 4. Caution in removal and making wiring connection to the parts for the automobile. Disconnect the battery terminal after turning the ignition key off. If wrong wiring connections are made with the battery connected, a short circuit and/or fire may occur. If extensive damage is caused due to negligence of repair, the legal responsibility shall be with the repairing company. PP-2538T PN-2541K
To engineers in charge of repair or inspection of our products.
Before repair or inspection, make sure to follow the instructions so that customers and Engineers in charge of repair or inspection can avoid suffering any risk or injury.
-1-
|
|
|
> |
|
