The service was quick and simple, finding the service manual easy and it appears to be the original with colour schematics. It contained the info I was after and so sorted the problem.
I have copied it to CD and attached the envelope to the inside back cover of the owners manual. Good manual and excelent service. Robin Wood, Wood Electronics, New Zealand.
;
Exactly what was needed to assess the product - excellent value and great service
 ;
Nice to have the service manual for the Sony DCR-TRV345E now. The document is of excellent quality.
;
MACKIE HR824 26 pages English-only Service Manual contains:
1) HR824 technical overview with the description of front and rear panel switches.
2) HR824 specs
3) Block Diagram
4) Wiring Diagram
5) Packaging management
6) Spare part & final assembly list (for PCB rev A and B) + exploded view
7) Test Procedures (where, how to measure voltage...) including Test Point diagram on the PCB.
8) IC and Transistor charts.
Excellent guide: very clear, good scan quality enabling us to print readable diagram :-)
Note:
Mackie HR824 make extensive use of surface mount devices (SMD). Service on the HR824 must
only be undertaken by experienced service technicians with the right tools, experience and patience to perform surface mount rework when needed.
;
This Service manual is very well scanned and its clean to read, no any anti-theft words that un-english could understand. I got my CCD600 working with this manual and it´s clear shematics :)
CHAPTER 13 TROUBLESHOOTING
Code
E071
· · · · · · · ·
Cause The side A sensor (PS2) is faulty. The side B sensor (PS3) is faulty. The C sensor (PS4) is faulty. The signal plate is faulty. The drum motor drive system is subjected to an overload. The transfer drum locking mechanism is faulty. The DC driver PCB is faulty. The CPU PCB is faulty.
1002
1003
1004
1005
1006
1007
1008
Timing of detection The rising edge signal of the signal plate to be detected by the side B sensor is not generated after the rising edge signal of the signal plate C detected by the C sensor has been generated. The rising edge signal of the signal plate C to be detected by the C sensor is not generated after the falling edge of the signal plate detected by the side B sensor has been generated. The falling edge signal of the signal plate C to be detected by the C sensor is not detected after the rising edge of the signal plate detected by the side B sensor has been generated. The rising edge signal of the signal plate to be detected by the side A sensor is not generated after the falling edge of the signal plate C detected by the C sensor has been generated. The falling edge signal of the signal plate to be detected by the side A sensor is not generated after the rising edge of the signal plate D detected by the C sensor has been generated. The rising edge signal of the signal plate D to be detected by the C sensor is not generated after the rising edge signal of the signal plate detected by the side A sensor has been generated. The rising edge signal of the signal plate D to be detected by the C sensor is not generated after the falling edge signal of the signal plate detected by the side A sensor has been generated.
13-342
COPYRIGHT © 1999 CANON INC.

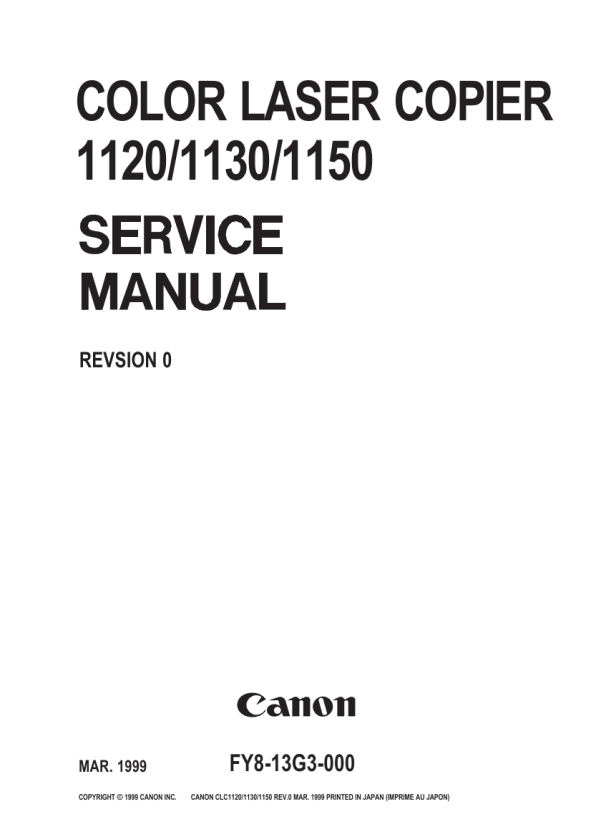

CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
|
|
|
> |
|
