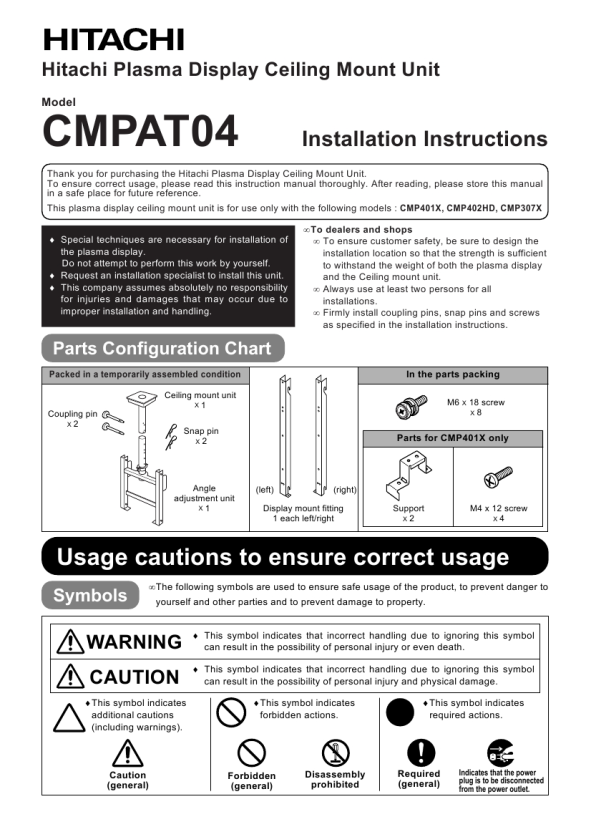

4. Installing the angle adjustment unit
1. Pass the wiring cables through the pipe, then insert the angle adjustment unit into the ceiling mount unit. Adjust the height so that the red mark on the pipe is not visible and then insert the two coupling pins. Have two coupling pins inserted into the linkage holes in the angle adjustment unit. 2. Insert snap pins into the holes in the ends of the coupling pins. 3. Tighten the 4 lock screws. 4. Adjust the horizontal angle of the screen. 5. Tighten the one rotation stopper screw. Red mark
2.Insert 2 snap pins. Ceiling mount unit
3.Tighten the 4 lock screws.
1.Insert the 2 coupling pins
Linkage hole
5.Tighten the rotation stopper screw.
Angle adjustment unit
This could cause the plasma display to fall if it is assembled to make the red mark visible.
4.Adjust the horizontal angle.
Mounting the display mounting fittings on the plasma display
CMP401X
1. Remove the stand. 1. Place a protective sheet cover on the top of a table and place the plasma display on the cover with the back side upward. 2. Remove the screws fastening the column and pull the column out in the direction indicated by the arrow mark. 3. Remove the 4 screws fastening the stand and remove the stand in the direction indicated by the arrow mark.
Remove 4 screws. Column Stand Remove the screws. CMP401X plasma display Stand
Table
-7-
|
|
|
> |
|
