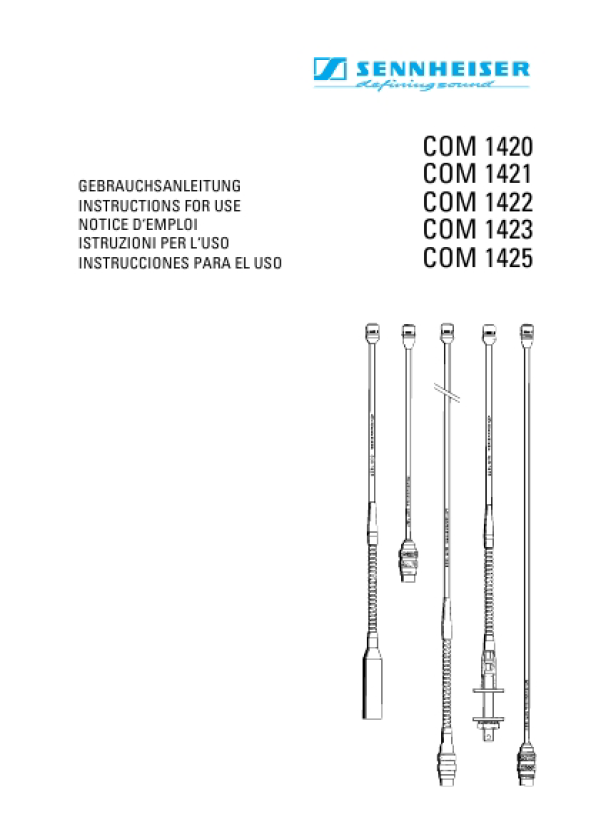

Microphones électrostatiques COM 1420-1425
Les microphones COM sont des micros statiques auto-polarisés à caractéristique cardioide. Ils sont plus particulièrement étudiés pour les transmissions sonores, conférences, sonorisation et studio. Caractéristiques � excellente qualité grace au principe statique auto-polarisé � alimentation par source de courant continu 4-24V ou alimentation fantome 12-48 V � surface noire mat � bonnette de proximité incluse
Types Désignation COM 1420 COM 1421 COM 1422 COM 1423 COM 1425 Longueur 455 mm 255 mm 416 mm 390 mm 361 mm Poids 80 g 70 g 80 g 75 g 65 g Fiche 8 poles, DIN 45326 8 poles, DIN 45326 8 poles, DIN 45326 XLR sans fiche Col inflexible inflexible flexible flexible flexible
Caractéristiques techniques Bande passante Principe acoustique Directivité Sensibilité à 1 kHz Impédance Impédance terminale Rapport signal/bruit selon DIN 45405 / CCIR 468-2 Alimentation: COM 1420,1421,1422 COM 1423 COM 1425 Livraison 50 - 20.000 Hz capteur à gradient de pression cardioide 8 mV/PA ± 2,5 dB (= 62 dB) env. 1 k� (COM 1423: 50 �) env. 4,7 k� (COM 1423: 1 k�) env. 58 dB +4 á +24V par la broche 8 fantome (12-48 V)/XLR sans fiche, +4 á +24V 1 microphone 1 bonnette de proximité MZW 42
Sous réserve de modification ou perfectionnement technique.
|
|
|
> |
|
