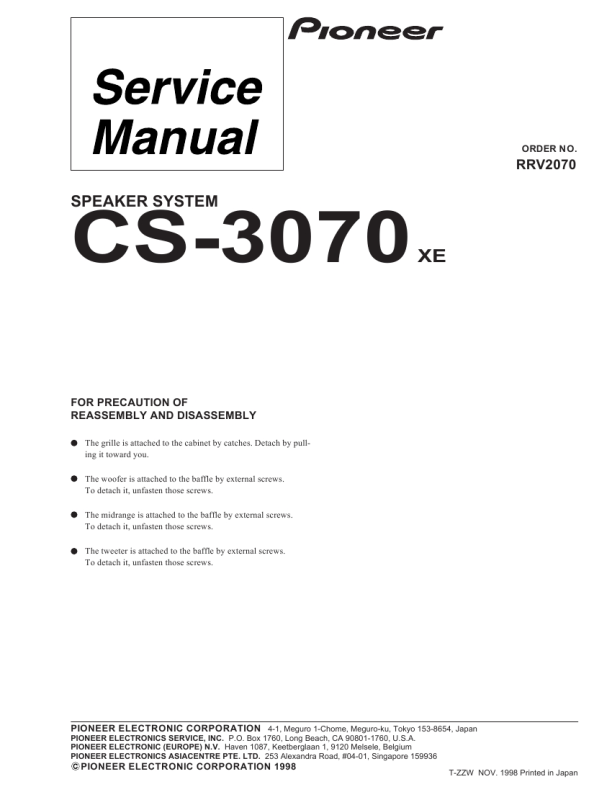

ORDER NO.
RRV2070
SPEAKER SYSTEM
CS-3070
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by catches. Detach by pulling it toward you. The woofer is attached to the baffle by external screws. To detach it, unfasten those screws. The midrange is attached to the baffle by external screws. To detach it, unfasten those screws. The tweeter is attached to the baffle by external screws. To detach it, unfasten those screws.
