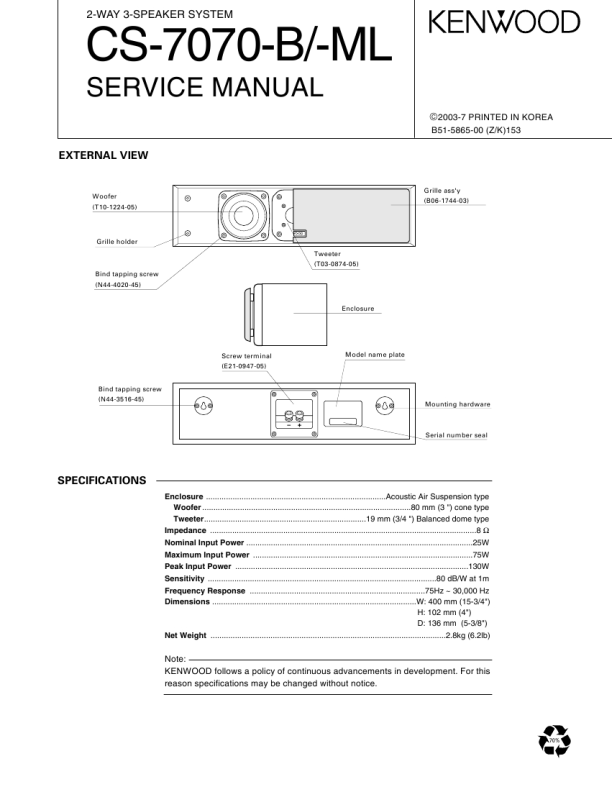

2-WAY 3-SPEAKER SYSTEM
CS-7070-B/-ML
SERVICE MANUAL
2003-7 PRINTED IN KOREA
B51-5865-00 (Z/K)153
EXTERNAL VIEW
Grille ass'y (B06-1744-03)
Woofer (T10-1224-05)
Grille holder Tweeter (T03-0874-05) Bind tapping screw (N44-4020-45) Enclosure
Screw terminal (E21-0947-05) Bind tapping screw (N44-3516-45)
Model name plate
Mounting hardware
Serial number seal
SPECIFICATIONS
Enclosure .................................................................................Acoustic Air Suspension type Woofer ..............................................................................................80 mm (3 ") cone type Tweeter.........................................................................19 mm (3/4 ") Balanced dome type Impedance ........................................................................................................................8 � Nominal Input Power ......................................................................................................25W Maximum Input Power ...................................................................................................75W Peak Input Power .........................................................................................................130W Sensitivity .......................................................................................................80 dB/W at 1m Frequency Response ...............................................................................75Hz ~ 30,000 Hz Dimensions ............................................................................................W: 400 mm (15-3/4") H: 102 mm (4") D: 136 mm (5-3/8") Net Weight ..........................................................................................................2.8kg (6.2lb)
Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
