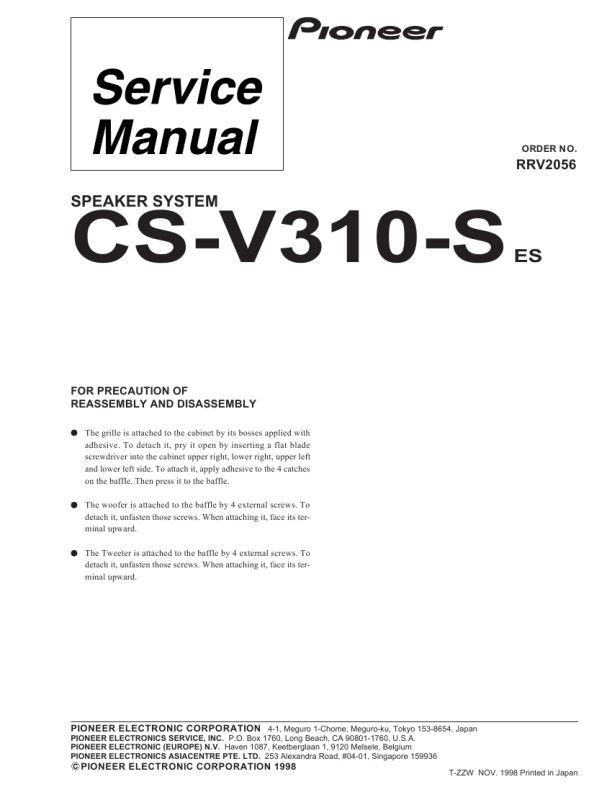

ORDER NO.
RRV2056
SPEAKER SYSTEM
CS-V310-S
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by its bosses applied with adhesive. To detach it, pry it open by inserting a flat blade screwdriver into the cabinet upper right, lower right, upper left and lower left side. To attach it, apply adhesive to the 4 catches on the baffle. Then press it to the baffle. The woofer is attached to the baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal upward. The Tweeter is attached to the baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal upward.
ES
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
T-ZZW NOV. 1998 Printed in Japan
|
