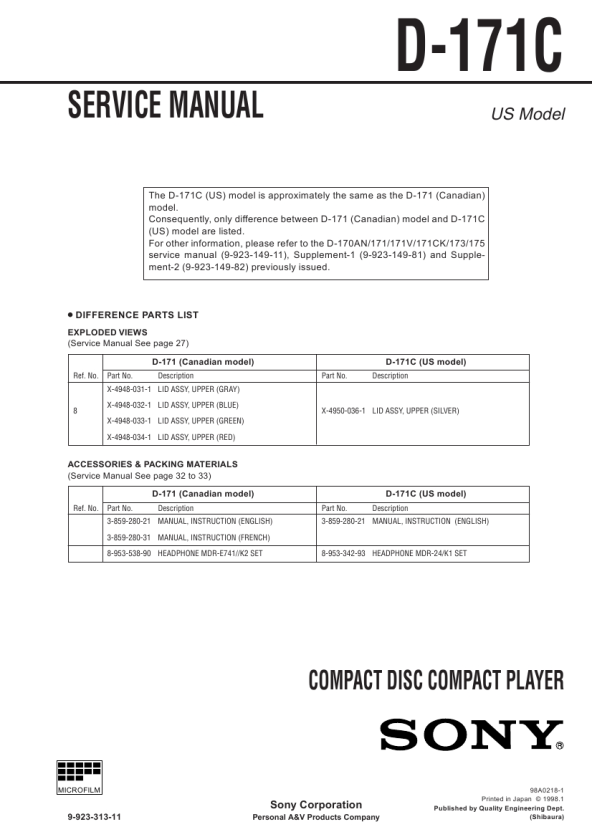

D-171C
US Model
SERVICE MANUAL
Ver 1.0 1998. 04
SUPPLEMENT - 1
File this Supplement with the Service Manual.
Subject : r A MODEL IN WHITE COLOR HAS BEEN ADDED
(ECN-CD850102)
The color of D-171C was originally silver, but a model in white color has been added. Consequently, only added parts are listed in this Supplement-1. For other information, please refer to the D-171C service manual (9-923-31311), D-170AN/171/171V/172CK/173/175 service manual (9-923-149-11), Supplement-1 (9-923-149-81) and Supplement-2 (9-923-149-82) previously issued.
r
ADDED PARTS LIST
EXPLODED VIEWS (D-170AN/171/171V/172CK/173/175 Service Manual See page 27)
Ref. No. 5 8 15 16 17 19 21 Part No. X-4950-144-1 X-4950-104-1 4-975-821-11 X-4950-145-1 4-986-055-01 4-984-751-01 4-984-747-01 Description CABINET (UPPER) SUB ASSY (WHITE) LID ASSY, UPPER (WHITE) BUTTON (CHARGE) (WHITE) CABINET (LOWER) SUB ASSY (WHITE) LID, BATTERY CASE (WHITE) KNOB (AVLS) KNOB (H-R)
Sony Corporation
9-923-313-81
Personal A&V Products Company
98D0218-1 Printed in Japan © 1998.4 Published by Quality Engineering Dept. (Shibaura)
|
|
|
> |
|
