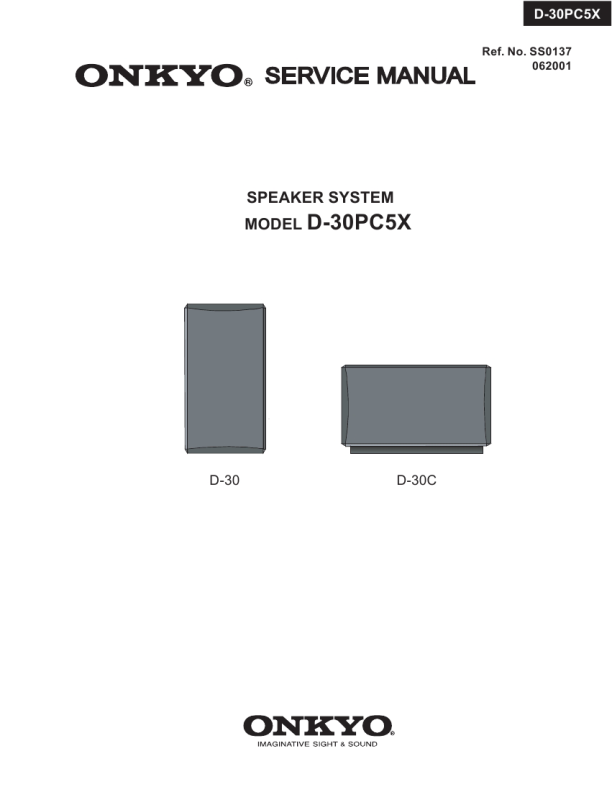

D-30PC5X SPECIFICATIONS
D-30
Type Impedance Maximum Input Power Output sound pressure level Frequency Response Cabinet Capacity Speaker Dimensions (W x H x D) Weiht
214 mm (8-7/16")
: : : : : : : : :
Full range , Bass Reflex 6 ohm 40W 84dB/W/m 100Hz - 20kHz 1.2 Litter 9cm OMF Cone type (Full range unit) e 130.5 x 214 x 77 mm 1.1kg
D-30C
Type Impedance Maximum Input Power Output sound pressure level Frequency Response Cabinet Capacity Speaker Dimensions (W x H x D) Weiht : : : : : : : : : Full range , Bass Reflex 6 ohm 70W 87dB/W/m 80Hz - 20kHz 1.5 Litter 9cm OMF Cone type (Full range unit) ) 265 x 130.5 x 79.5 mm 1.7kg
(5-1/8")
SIZE DRAWING
Cabinet Grille Cabinet Grille
130.5 mm (5-1/8")
75 mm (2-15/16")
130.5 mm
265 mm (10-7/16")
77.5 mm (3-1/16")
D-30
D-30C
|
|
|
> |
|
