I was having a hard time finding the problem with this Mackie 1604 unit. I didn't have a schematic. Went looking on the web and found your site and the price was more then reasonable. Ordered it and within the hour had the manual and within 15 minutes had the unit fixed. Best $4.99 I ever spent. Thank you.
Doug
;
This is a service manual in every sense of the word ( French and German versions of the text are included, as well as English..)
There are explanations of the mechanical and electrical functions, plenty of mechanical drawings, and the needed schematics. The quality of the scanning is excellent - all the component values are clearly legible - and very usefully there are pcb component layouts, so you can find a component on the schematic, and then very quicky pinpoint its physical location on the relevant pcb.
I cannot see how I can give this manual any less than the maximum 5 stars! Great value for money, which will pay for itself immediately. Excellent all round!
;
the manual is great and especially hard to find... thanks for the great service and having a hard to find manuel_
;
Please tell us what you think and share your opinions with others. Be sure to focus your comments on the product. You will receive $2.50 of store credit for Your review.
;
hat alles sehr gut geklappt. Das Servicemaual ist gut zu verwenden. Die Pläne und Schrift
ist klar und leserlich. Außerdem preiswert. Grüße an alle Hifi-Bastler
CHAPTER 3 MECHANICAL SYSTEMS
3.4.2 Correcting the Skew Caused by the Pickup Unit
If images on copies are askew, make adjustments shown in 1.1.1 �Adjusting the Original Leading Edge Stop Position� in Chapter 5; if the skew is not corrected, perform the following: 1) Loosen the five fixing screws of the pickup unit. (For the position of the fixing screw, see 3.4.1.) 2) Move the pickup unit to the left and the right as shown. 3) When this adjustment is done, adjust the original leading edge stop position. (See 1.1.1 of Chapter 5.)
F03-304-05
3.4.3 Removing the Delivery Unit
When detaching the delivery unit, be sure to indicate its position by marking the fixing screw. If displaced, it can cause paper to move askew. 1) Remove the machine cover. (See 1.1.3.) 2) Disconnect the two connectors [1]. 3) Free the harness [3] from the harness stop [2].
[1] [2] [3]
[1]
F03-304-06
COPYRIGHT© 2000 CANON INC. 2000 2000 2000 CANON DADF-F1 REV.0 NOV. 2000
3-23

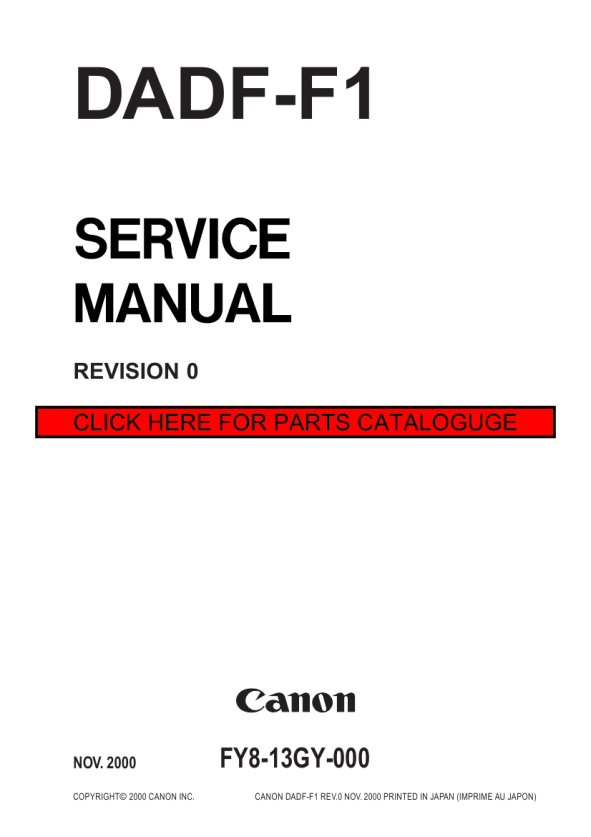

 $4.99 DADF-F1 CANON
