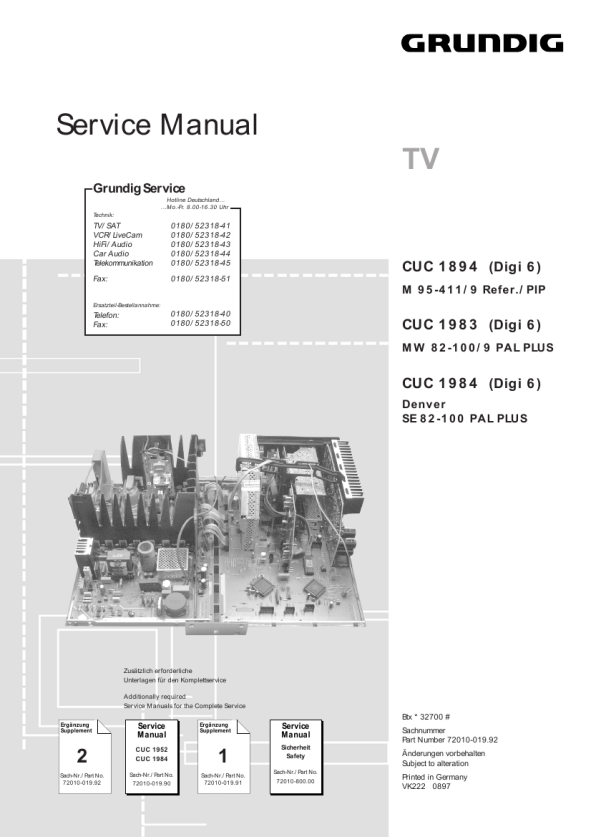

Allgemeiner Teil / General Section
Digi 6
D
Für diese Geräte gilt das Service Manual CUC 1952 / CUC 1984. Diese Ergänzung dokumentiert die Unterschiede bzw. zusätzlichen Bestückungen der Geräte. Die Modulübersicht und die Sachnummern der einzelnen Bausteine entnehmen Sie bitte der Tabelle auf Seite 2. Grundlage für den Service sind: � Sicherheitsvorschriften (Sach-Nr. 72010-800.00) � Service Manual CUC 1952 / CUC 1984 (Sach-Nr. 72010-019.90) � 1. Ergänzung CUC 1952 / CUC 1984 (Sach-Nr. 72010-019.91) � 2. Ergänzung CUC 1894 / 1983 / 1984 (Sach-Nr. 72010-019.92)
GB
For these TV sets the Service Manual CUC 1952 / CUC 1984 is applicable. This Manual describes the differences and the additionally fitted modules of the TV receivers. The Module List and the relevant part numbers are listed in the table on page 2. Basic instructions for servicing are given in the: � Safety Instructions (Part No. 72010-800.00) � Service Manual CUC 1952 / CUC 1984 (Part No. 72010-019.90) � 1st Supplement CUC 1952 / CUC 1984 (Part No. 72010-019.91) � 2nd Supplement CUC 1894 / 1983 / 1984 (Part No. 72010-019.92)
Inhaltsverzeichnis
Seite
Modulübersicht ................................................................................ 2 Technische Daten ........................................................................... 3 Aktive Antennenweiche 29620-013.51 ........................................... 4 Signal-Chassis-Platte ...................................................................... 5 NF-Verstärker 29524-104.81 / .82 ................................................ 11 Gesamtschaltplan Signal-Chassis ................................................ 17 Ersatzteillisten ............................................................................... 24
Table of Contents
Page
Module List ...................................................................................... 2 Technical Data ................................................................................ 3 Active Aerial Crossover Network 29620-013.51 ............................. 4 Signal Chassis Board ...................................................................... 5 AF Amplifier 29524-104.81 / .82 ................................................... 11 Circuit Diagram Signal Chassis .................................................... 17 Spare Parts Lists ........................................................................... 24
Modulübersicht / Module List
M 95-411/9 Reference / PIP (CUC 1894)
MW 82-100/9 PAL PLUS (CUC 1983)
Denver SE 82-100 PAL PLUS (CUC 1984)
Bestell-Nr. Order No. Chassis HF (Signal) Chassis Netz (Mains) Signal-Baustein Signal Module Bildrohrplatte CRT Panel Bedieneinheit Control Unit Keyboard Fernbedienung Remote Control Feature-Box Netzschalterplatte Mains Switch Panel Buchsenplatte Socket Board NF-Verstärker AF-Amplifier VGA-Baustein VGA Module PIP-Baustein PIP Module EURO-AV Aktive Antennenweiche Active Antenna Diplexer
GCG 4890 29701-097.08 29701-098.25 29524-162.35 29305-122.07
GCF 4281 29701-097.20 29701-098.19 29524-162.35 29305-122.15
GCG 3075 29701-097.19 29701-098.19 29524-162.35 29305-122.15
29501-082.55
29501-083.24 29642-061.01 TP 800 29524-103.38 29305-165.72 29305-008.36 29524-104.81
29501-083.24 29642-061.11 TP 900 29524-103.38 29305-165.72 29305-008.36 29524-104.82
29642-061.01 TP 800 29524-103.41
29524-104.82
29305-160.35
29305-160.35
29305-160.35
29524-165.96
29524-165.97
29305-160.34
29305-160.34 29620-013.51
29305-160.34 29620-013.51
-
2
GRUNDIG Service
|
|
 |
> |
|
|
