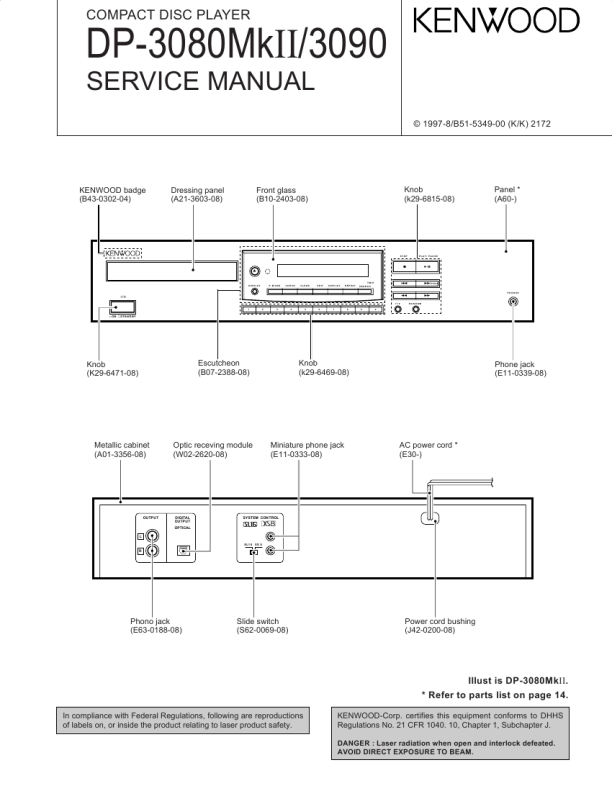

DP-3080Mk��/3090
CONTENTS / ACCESSORIES / CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONS............. 2 DISASSEMBLY FOR REPAIR .................................. 2 CIRCUIT DESCRIPTION .......................................... 3 ADJUSTMENT ........................................................... 4 PC BOARD ............................................................... 5 SCHEMATIC DIAGRAM ............................................ 7 EXPLODED VIEW .................................................. 12 PARTS LIST..............................................................14 SPECIFICATIONS ....................................................17
Accessories
Audio cord ...........................................(1) (E30-2841-08) Batteries (R6/AA) ................................(2) Remote control unit ..........................(1) (A70-1181-08) : RC-P03050
RC-P0505
Battery cover (A09-0356-08) System control cord..........................(1) (E30-2629-05) AC plug adaptor .................................(1) (E40-9981-08) M type only
Cautions
Note related to transportation and movement
Before transporting or moving this unit, carry out the following operations. 1. Turn the power ON but do not load a disc. 2. Verify that the display shown appears. 3. Wait a few seconds and set the unit to STANDBY mode.
TRACK 1 6 2 7 3 8 13 18 4 9 5 10
no d sc 1
¶ ¶ ¶ ¶
11 12 16 17
14 15 19 20
Beware of condensation
When water vapor comes into contact with the surface of cold material, water drops are produced. If condensation occurs, correct operation may not be possible, or the unit may not function correctly. This is not a malfunction, however, the unit should be dried. To do this, turn the ON/STANDBY switch ON and leave the unit as it is for several hours.
Be especially careful in the following conditions:
When the unit is brought from a cold place to a warm place, and there is a large temperature difference. When a heater starts operating. When the unit is brought from an air-conditioned place to a place of high temperature with high humidity. When there is a large difference between the internal temperature of the unit and the ambient temperature, or in conditions where condensation occurs easily.
REMOTE CONTROL UNIT
DISASSEMBLY FOR REPAIR
How to remove the CD tray. 5 Remove the CD mechanism from unit before this step. 1. Remove the 2 screws (1), then remove the clamper fram. 2. Turn the gear (2) under the tray, then remove the tray on the position A (3). 3. Remove the guide frame (4), then remove the collar of the leaf switch in the left direction (5). 4. While raising the click on the left-rear side of the tray (6), pull out the tray (7).
3
po si ti o n "A "
2
1
1
4
6
7
CP401 CP201
5
2
|
|
|
> |
|
