Paper insertion
Is paper sensor detected the insertion ? Yes
No
Motor turns and a position of head goes down from HCAM 1 to HCAM 2.
B
Stepping motor turns and feeding the paper to the print start position.
Paper jam sensor detects a kind of paper and paper jam.
Is paper sensor turned off ? Yes
No
Ribbon rewinding motor turns and feeding ribbon to the beginning of yellow (detects 2 lines before yellow color).
Motor turns and a position of head goes down from HCAM 2 to HCAM 4.
A
� 18 �

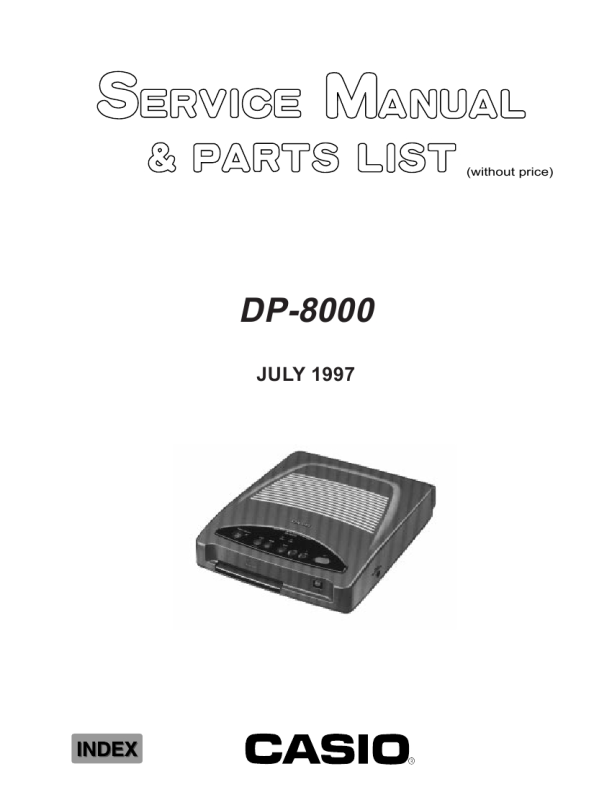

 $4.99 DP8000 CASIO
