DPC-5.3 FW DOWNLOAD
Confirm the firmware "CD PLAY" button and "DISC 3" button on the front panel should be pressed at the same time. --------- Factory EEPROM reset. Wattching the version of firmware in the FL tube. When the name of the binaly file you wantto downloding is "dvcp5111.bin", you may type "ttcmake dpc5.3fw1" in thr DOS prompt. Adifferent bin file requires a new data. 1. "TTCMAKE.EXE" file is downloaded to its own personal computer. (C-Drive) 2. "dvcp5111.bin" file is downloaded to its own personal computer. Fig. 1 (The same drive as 1.) TTCMAKE.EXE : application file
dvcp5111.bin : Binaly file
Space
3. Call the "ttcmake dvcp5111" in the DOS prompt. 4. Call the file name of "dpc5.3" holder, and "ttcmake dvcp5111" . Fig. 2
5. Created the "ENTRISE. TTC" Fig. 3 6. File created by 5. is copied to CD-R. Caution: File format should be "ISO9660"
dps5.3
dps5.3
Fig. 1
C: >cd.. C: cd dpc5.3 C: dpc5.3>ttcmake dvcp5111
cd dpc5.3 dpc5.3
Fig. 2
Fig. 3

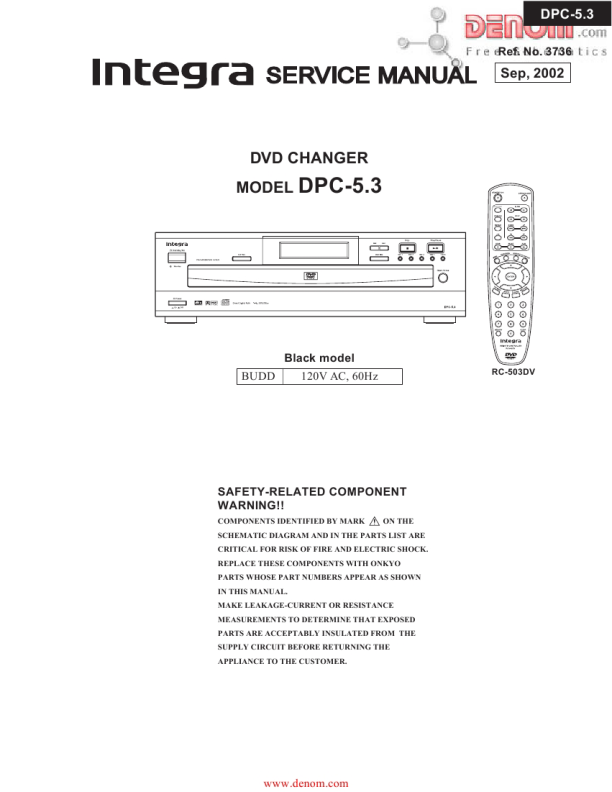

 $4.99 DPC5.3 ONKYO
Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
|
