1. SERVICE NOTE
1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) Note 1: When replacing the SY-183 board, erase the data in internal memory of the board before replacement.
Method for Copying the Data in Internal Memory
Copy
Copies all images in the internal memory to a �Memory Stick Duo�.
1 Insert a �Memory Stick Duo� with sufficient capacity. 2 Touch [Copy]. The message �All data internal memory will be erased� appears. 3 Touch [OK]. Copy starts.
To cancel the copying
Touch [Cancel] or [BACK] in step 3.
� Use a fully charged battery pack. If you attempt to copy image files using a battery pack with little remaining charge, the battery pack may run out, causing copying to fail or possibly corrupting the data. � You cannot copy individual images. � The original images in the internal memory are retained even after copying. To delete the contents of the internal memory, remove the �Memory Stick Duo� after copying, then execute the [Format] command in [ Internal Memory Tool]. � When you copy the data in the internal memory to the �Memory Stick Duo�, all the data will be copied. You cannot choose a specific folder on the �Memory Stick Duo� as the destination for the data to be copied. � Even if you copy data, a DPOF (Print order) mark is not copied.
Method for Formatting the Internal Memory
This item does not appear when a �Memory Stick Duo� is inserted in the camera.
Format
Formats the internal memory.
� Note that formatting irrevocably erases all data in the internal memory, including even protected images.
1 Touch [Format]. The message �All data internal memory will be copied� appears. 2 Touch [OK]. The format is completed.
To cancel the formatting
Touch [Cancel] or [BACK] in step 2.

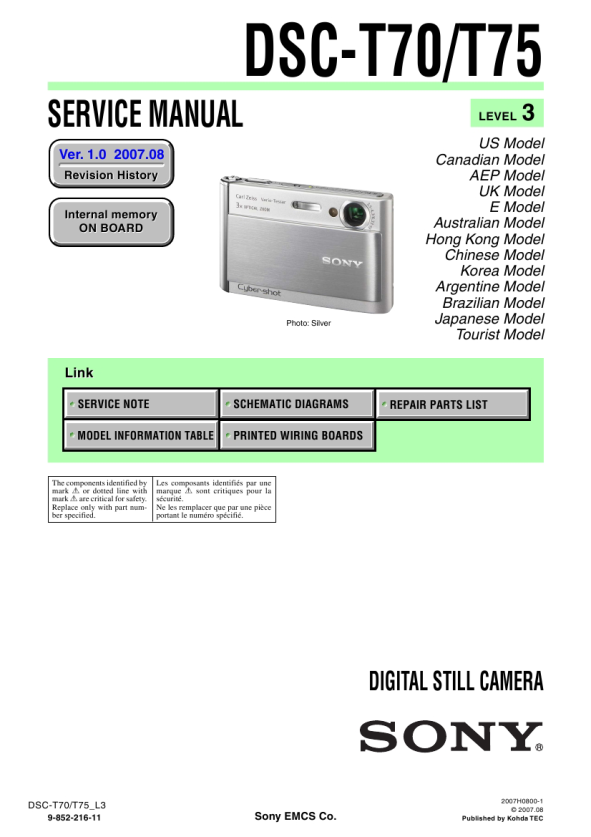

DSC-T70/T75_L3 1-3
|
|
|
> |
|
