Home >> SONY >> DSC-W130 LEVEL2 Service Manual

 0 item(s) in your cart

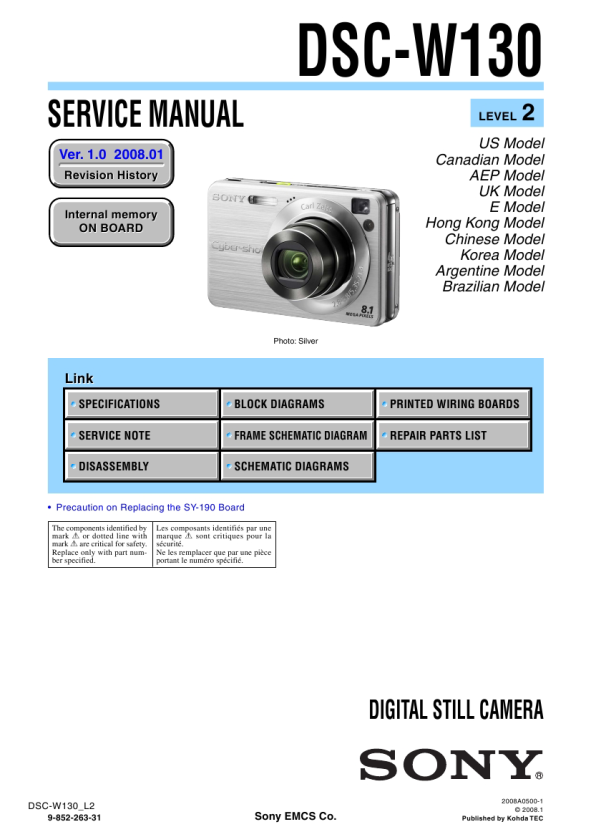

SONY DSC-W130 LEVEL2
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of SONY DSC-W130 LEVEL2 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CJV55 PIONEER Service Manual by Joseph Dulick Jr;
Impressively thorough. Even the simple operators manual helped me "fix" one of the 2 CD players in the unit. This unit reads CD's from the top so they should be installed in the magazines "upside down" from typical CD players. The CD player service manual helped me unjam a stuck carriage because somebody transported the box laying down loaded with CD's. A little lens cleaning & the player now works well! Thanks for you help at a great price! Joe
 PMD-221 MARANTZ Service Manual by Benjamin AM;
I was skeptical at first but later found the manual to be good quality for the price. It took a couple hours to receive the email with the download link, well worth the wait. Thanks.
 VGCRA SONY Service Manual by Mark Shapiro;
very helpful, I could not have cleaned motherboard and replaced the main fan without it
 HA6800 HITACHI Service Manual by Josh Dodd;
Good manual, schematics nice and clear with good quality scanning. Woul dhave been nice to have immediate access after purchasing though.
 4378 GOYA EXCLUSIV PHILIPS Service Manual by Jan Hrin;
I was very glad recieving the service manal from You. Manuals were delivered promptly and were correct as advertised. A complete and very usefull service manual with all details. Thank you!

Text excerpt from page 17 (click to view)
Installation 1 Install the lens flexible board with four solders. 2 Referring to the following figure, check each part state of lens rear block. 3 Install Optical Stepping Motor. 4 Tighten one screw. * Tightening torque = 0.049 ± 0.01N ⢠m (0.5 ± 0.1kgf ⢠cm) 4 Screw 3 Optical Stepping Motor 2 Check the state of each part Check if the shaft fits with the groove.

Check if the hook fits with the shaft

1 Solders Lens Rear Block

5 Rotate the gear of lens barrel in arrow direction to extend the lens. 6 Check the inside of lens barrel and the lens for dust or stain, and then install the lens rear block. 7 Tighten three screws. * Tightening torque = 0.049 ± 0.01N ⢠m (0.5 ± 0.1kgf ⢠cm) 8 Install Zoom Gear Block by referring to the installation 4 to 6 in "2-5-1. Zoom Gear Block Replacing Method". 9 Connect the connector of lens flexible board. 0 Assemble the lens flexible board with the mold of Lens Block. qa Engage the lens flexible board with the claw. 7 Screw 9 Connector qa Claw 6 Lens Rear Block

0 Molds

8 Zoom Gear Block

5

DSC-W130_L2 2-10
