There are currently no product reviews.
 ;
THIS MANUAL IS VERY GOOD AND VERY CLEAR
PLEASE NOTE IT DOES NOT CONTAIN THE SETUP INFORMATION TO ALIGHN THE GEARS IN THE CD MECH IT DOES SHOW ALL THE PARTS AND THEIR LOCATIONS .
;
Complete service and operation manual. All schematics are there, all circuit boards AND add-on boards. Including exploded views ,component names and specifications. Also electrical and mechanical adjustment procedures are in this manual. This manual also covers the more advanced BR-S811E unit. Scan quality is fair and usable.
 ;
High quality scan of original Service Manual. Everything´s fine!
;
Good scan of the original service manual. All schematics and adjustment procedures are there. It helped me to fix a long lasting problem with the tracking circuitry. The manual also includes the supplementals 1,2 and 3. Included are; electrical schematic's , pcb layout's, mechanical drawing's and exploded views, disassembly manual and maintenance procedures. 236 pages.
;
The Service Manual received was helpful. The electronic information is exactly what I needed.
I recomend all of my friends about this technical page.
1
2
3
4
6.5 MECHANISM ADJUSTMENT
A
1 Tangential and Radial Height Coarse Adjustment START
� Remove the 03 SD Pickup Assy-S from the Traverse Mecha. Assy. � Remove the joint and the joint spring of the 03 SD Pickup Assy-S.
03 SD Pickup Assy-S
B
Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7.1.10 DISASSEMBLY".
Joint Joint Spring
� Pass through the guide shaft to a new 03 SD Pickup Assy-S. � Attach it to the Traverse Mecha. Assy.
C
03 SD Pickup Assy-S
Guide Shaft
D
� Put the joint between the Tangential (or Radial) adjustment screw and the mechanism base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".)
Joint
7.5mm Mechanism base
E
� Attach the Traverse Mecha. Assy-S to the 04 LOADER Assy. � Turn it over and attach the joint and the joint spring. � Arrange the flexible cables. (Refer to "7.1.10 DISASSEMBLY".)
F
48
1 2

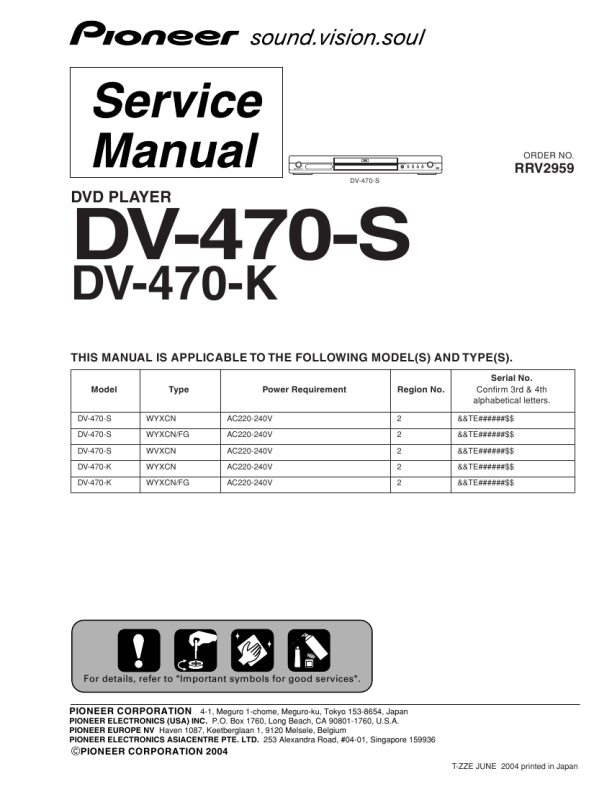

DV-470-S
3 4
|
|
|
> |
|
