This is the correct service manual of SHARP RX-100H(BK) DAT.

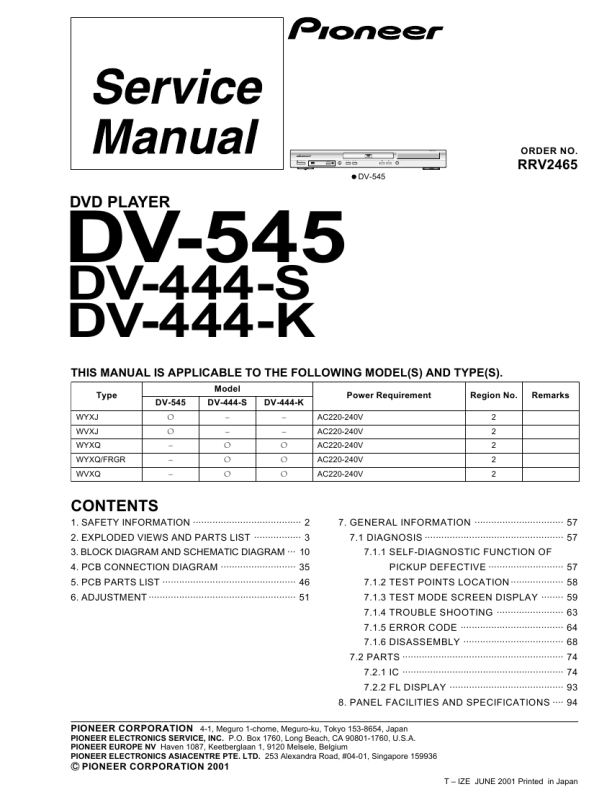

DV-545, DV-444-S, DV-444-K
6.5 MECHANISM ADJUSTMENT
1 Tangential and Radial Height Coarse Adjustment START
� Remove the servo mechanism. � Remove a Spacer for height adjustment attached to the back side (shaded area) of the Servo Mechanism (Float Base) with nippers. Cautions: Because there is not a Spacer for height adjustment in adjustment after the second time, will keep it at need. (This parts is Traverse mechanism exclusive use of a model for 2001 years) 7.3mm
Servo Mechanism
Float Base
Put a spacer between a Tangential (or Radial) adjustment screw and Mechanism Base and turn each screw to adjust the height. (Refer to "6.1 ADJUSTMENT ITEMS AND LOCATION".)
Spacer for Height adjustment
Note: Turn the Short switch to Short side when removing the Pickup Flexible Cable. (Refer to "7.1.6 DISASSEMBLY".)
Turn a flat side into bottom
