7.1.6 DISASSEMBLY DIAGNOSIS OF FJMB ASSY
1 Bonnet and Tray Panel
1 2 3 4 5 6
Remove the Bonnet (Screws � 6) Power ON Tray open (0) Remove the Tray Panel Tray close (0) Pull out the Power Cable from the outlet.
DOUT ASSY : This is not installed to this.
How to Open the Tray by Manual Operating
In the reverse state, pass a small screwdriver through a slit and slide a protruding portion of the Drive Gear of the Loading Mechanism Assy to the direction of arrow. If the Tray moved toward the front about 2 or 3 cm, pull out the Tray by hands. Small Square-bar Screwdriver
Slit
2
Protruding portion
Small Square-bar Screwdriver
4 5 3
Tray Tray Panel Loading Mechanism Assy
35
Drive Gear
2 Front Panel Assy
1 2 3 4
Unclamp the wire. Disconnect the wiring. Unhook (�6) Remove the Front Panel.
3
�3
3 4
�3
Front Panel
2 1

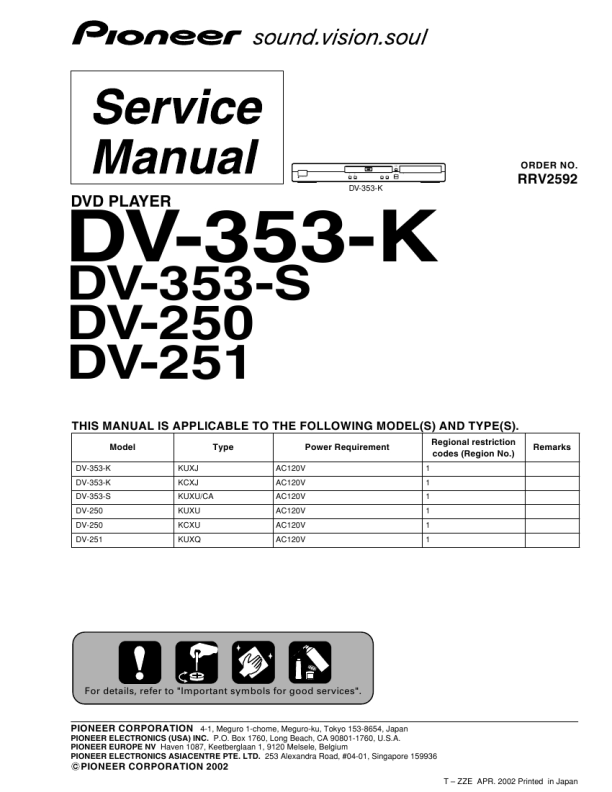

DV-353-K
71
|
|
|
> |
|
|
