1
2
3
4
A
DOSE NOT LIGHT ON
Is the voltage at pin 13 and pin 43 of IC651 about 5V?
B
No
Check V+5E line of POWER BLOCK.
Yes Is the voltage at pin 1,2 about -19V? And pin 34,35 about -15V? Yes Replace V651 or IC651. No Check FL-,LF+line of POWER BLOCK.
C
NO PLAYBACK PICTUER OF AV JACK,21 PIN JACK
Is the voltage (beam current) at JG009 andJG008?
D
No Check loader BLOCK.
Yes
Is there a signal at pin 187 of IC4002?
No
Check IC4002 and peripheral circuit.
Yes
Is the video signal
E
No CheckJ8102.
at pin 33 of IC8101?
Yes Change IC8101.
F
30
1 2

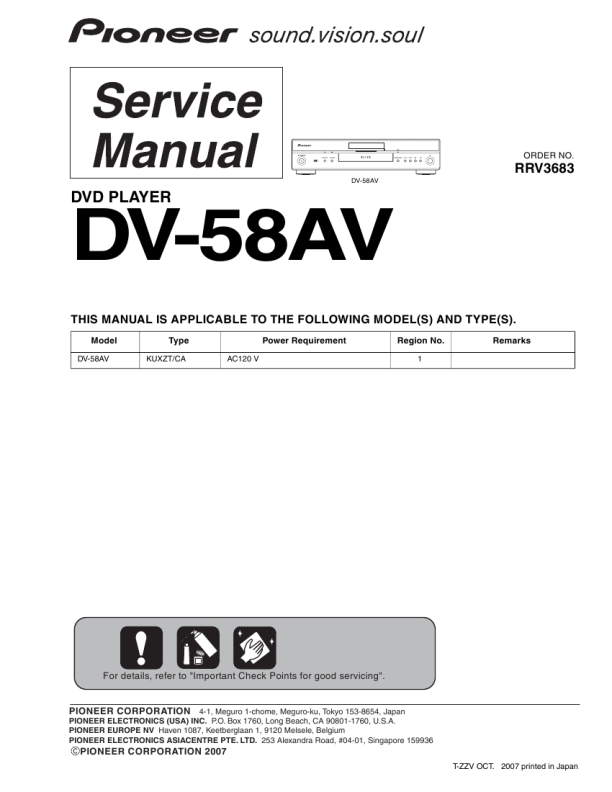

DV-58AV
3 4
|
