1
2
3
4
3 Cleaning the pickup lens
A
1 2 3 4
Remove the aluminum tape. Unhook the four hooks. Remove the front bezel. Remove the four screws.
7 8
Remove the two screws. Remove the clamper section.
Clamper section
4
Bottom view
41
Aluminum tape
B
7 4 2 2 4
8
7
C
3
Front bezel
2
2
9
D
Clean the pickup lens. Before shipment, be sure to clean the pickup lens, using the following cleaning materials: Cleaning liquid Cleaning paper : GEM1004 : GED-008
5 6
Remove the one screw. Remove the top cover.
Pickup lens Top cover
6
E
5
F
74
1 2

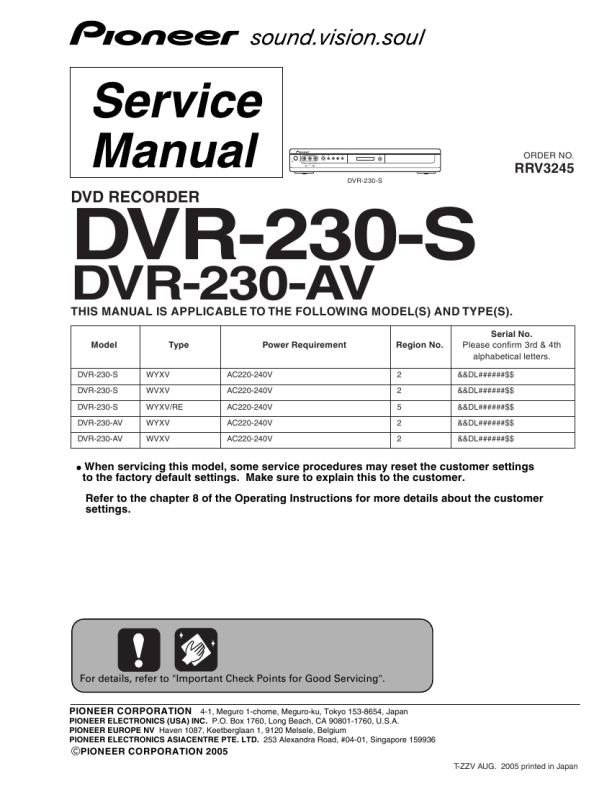

DVR-230-S
3 4
|
