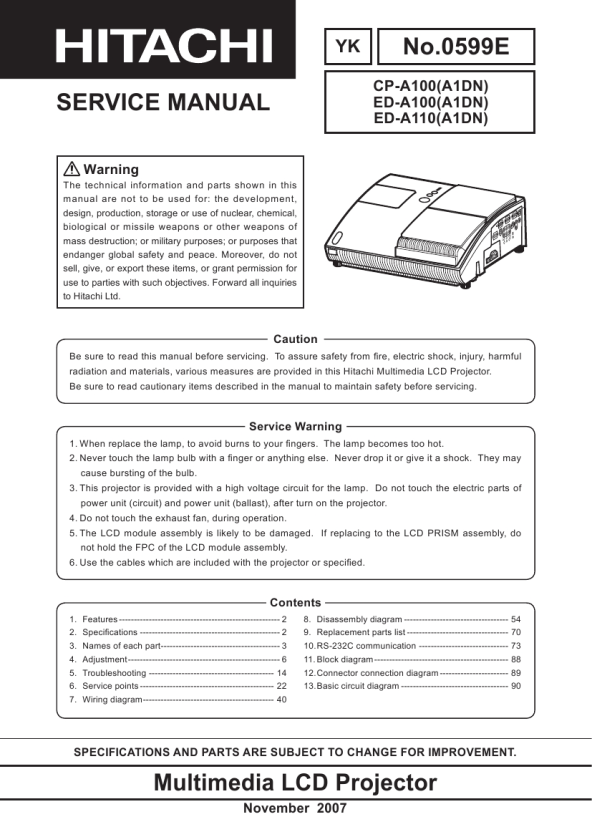

HITACHI ED-A110
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of HITACHI ED-A110 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CDR20 HARMAN KARDON Service Manual by CARLOS LOPEZ;
I PURHASED THIS PRODUCT BECAUSE I WAS HAVING PROBLEMS WITH MY CDR20 HARMAN KARDON RECORDER. WHICH I PURCHASED NEW 12 YEARS AGO. AFTER REVIEWING THE MANUAL, I WAS ABLE TO ADJUST THE TENSIONER IN THE SYSTEM. WORKS LIKE A CHAMP!. SAVED ME AT LEAST 100.00 WHICH WAS WHAT A SERVICE REPAIR STATION WANTED. GREAT MANUAL EASY TO READ. SPECIALLY AFTER I PRINTED THE PAGES WHICH DEALT WITH MY RECORDER. THANKS A LOT!!!!!!!!
 ZSX5000 SONY Service Manual by Diogo Silva;
You can fully trust on this one! All the schematics are very crear an in one piece per page
 Z-5000 TEAC Service Manual by MESUT BALCI;
I have never bought a service manual which is as competely readable as this althogh it was a scanned pdf. Thank you for this succesful manual also cheaper than other sites.
 T-77 SANSUI Service Manual by Åsbjörn Ulvstig;
Thanks for a very good and readable servicemanual. Just what I needed as a "dinosaur technician". I really recommmend this site and will come back. Åsbjörn
 VT6500A HITACHI Service Manual by Virgil Norman;
The manual I purchased was just what I needed. I was glad to find a site where I can find so many manuals on a wide variety of products.

Text excerpt from page 74 (click to view)
CP-A100 / ED-A100 / ED-A110 (A1DN)

Requesting projector status (Get command) (1) Send the following request code from the PC to the projector. Header + Command data (â02Hâ + â00Hâ + type (2 bytes) + â00Hâ + â00Hâ) (2) The projector returns the response code â1DHâ + data (2 bytes) to the PC. Changing the projector settings (Set command) (1) Send the following setting code from the PC to the projector. Header + Command data (â01Hâ + â00Hâ + type (2 bytes) + setting code (2 bytes)) (2) The projector changes the setting based on the above setting code. (3) The projector returns the response code â06Hâ to the PC. Using the projector default settings (Reset Command) (1) The PC sends the following default setting code to the projector. Header + Command data (â06Hâ + â00Hâ + type (2 bytes) + â00Hâ + â00Hâ) (2) The projector changes the speciï¬ed setting to the default value. (3) The projector returns the response code â06Hâ to the PC. Increasing the projector setting value (Increment command) (1) The PC sends the following increment code to the projector. Header + Command data (â04Hâ + â00Hâ + type (2 bytes) + â00Hâ + â00Hâ) (2) The projector increases the setting value on the above setting code. (3) The projector returns the response code â06Hâ to the PC. Decreasing the projector setting value (Decrement command) (1) The PC sends the following decrement code to the projector. Header + Command data (â05Hâ + â00Hâ + type (2 bytes) + â00Hâ + â00Hâ) (2) The projector decreases the setting value on the above setting code. (3) The projector returns the response code â06Hâ to the PC. When the projector cannot understand the received command When the projector cannot understand the received command, the error code â15Hâ is sent back to the PC. Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code â15Hâ is sent back to the PC. If this error code is returned, send the same command again. When the projector cannot execute the received command. When the projector cannot execute the received command, the error code â1CHâ + âxxxxHâ is sent back to the PC. When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.
NOTE ⢠Operation cannot be guaranteed when the projector receives an undeï¬ned command or data. ⢠Provide an interval of at least 40ms between the response code and any other code. ⢠The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data. ⢠Commands are not accepted during warm-up.
