Text excerpt from page 4 (click to view)

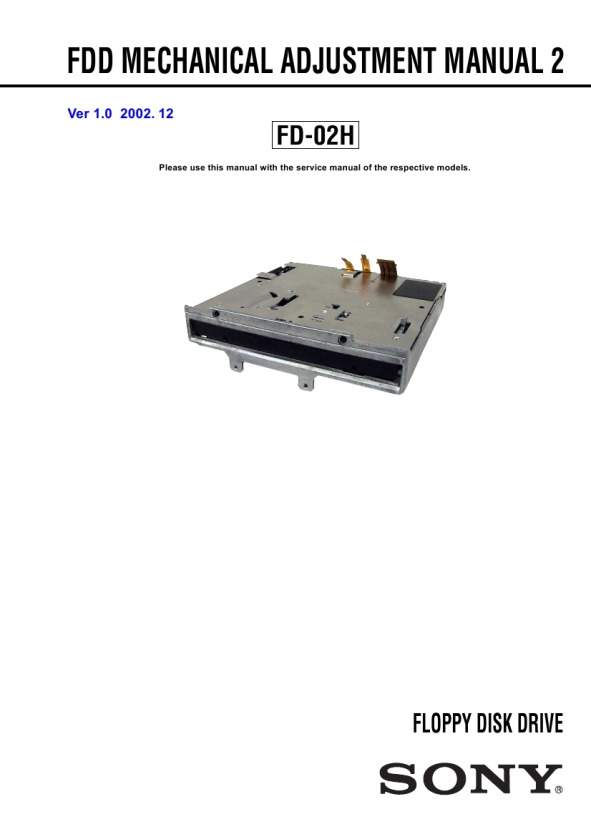

FDD MECHANICAL ADJUSTMENT MANUAL 2
1-3. BASE ASSY 02 SST
2 Remove the Base Assy 02 SST, being careful so that the part C does not hit the head piecs. Note: Take care not to deform Leaf Spring by raising the HCA upper too much. Part C
HCA Leaf Spring 1 Inserting the shaft of special jig under the bottom of HCA, set the drive.
