PDF Contains
Technical Data, Mechanical data, Detailed Circuit diagram with components value, PCB layout. Actual PCBs Print. Component List, Spare parts code list and Input output detail. It cover LBB1211, LBB1212, LBB1213, LBB1216, LBB1217.
It is the actual Service Manual for SQ10

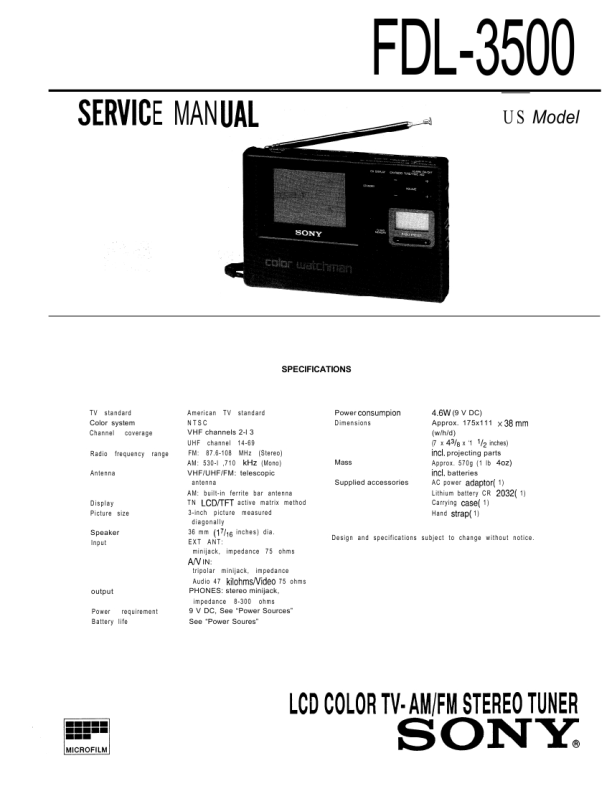

FDL- 3500
SECTION 2
NOTE : Follow the disassembly procedure in the numerical order given.
2- 1. FRONT AND REARCABINET ASSY
Revove the front and rear cabinet assy in the numerical order given. . r @PTP
Q+P2x6
2x8
rear cabinet assy @PTP
2x6
@lid ba ttery
case
f r o n t cabi
2-2. MAIN AND INVERTER BOARD
Remove the main and inverter board in the numerical order given.
|
