The service was quick and simple, finding the service manual easy and it appears to be the original with colour schematics. It contained the info I was after and so sorted the problem.
I have copied it to CD and attached the envelope to the inside back cover of the owners manual. Good manual and excelent service. Robin Wood, Wood Electronics, New Zealand.
;
Exactly what was needed to assess the product - excellent value and great service
 ;
Nice to have the service manual for the Sony DCR-TRV345E now. The document is of excellent quality.
;
MACKIE HR824 26 pages English-only Service Manual contains:
1) HR824 technical overview with the description of front and rear panel switches.
2) HR824 specs
3) Block Diagram
4) Wiring Diagram
5) Packaging management
6) Spare part & final assembly list (for PCB rev A and B) + exploded view
7) Test Procedures (where, how to measure voltage...) including Test Point diagram on the PCB.
8) IC and Transistor charts.
Excellent guide: very clear, good scan quality enabling us to print readable diagram :-)
Note:
Mackie HR824 make extensive use of surface mount devices (SMD). Service on the HR824 must
only be undertaken by experienced service technicians with the right tools, experience and patience to perform surface mount rework when needed.
;
This Service manual is very well scanned and its clean to read, no any anti-theft words that un-english could understand. I got my CCD600 working with this manual and it´s clear shematics :)

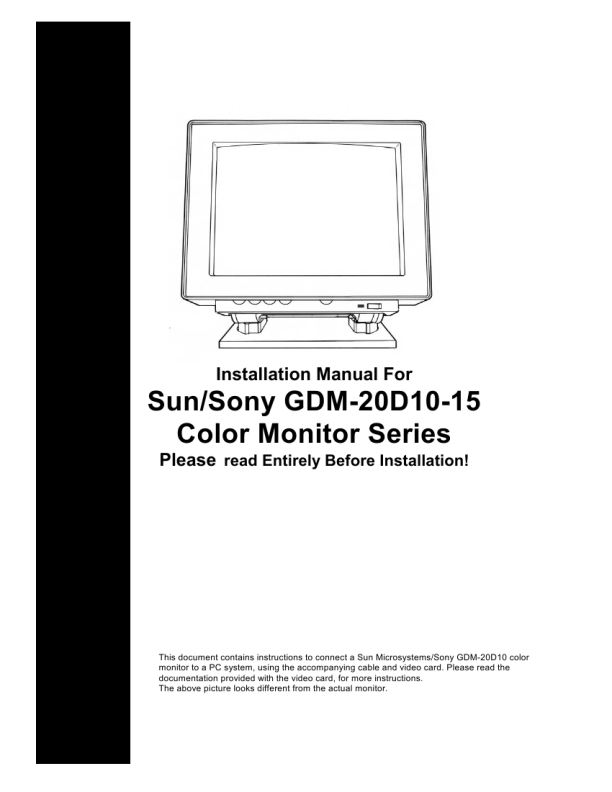

Monitor SPECIFICATION:
Vertical refresh rate : 60-120 Hz Horizontal Scan rate: 60- 81 KHz (Kilo Hetrz). Horizontal and Vertical sync polarity : recommended Negative polarity (-,-) Horizontal scan rate is automatic for the above range. Maximum Resolution: 1600x1200 Monitor Adjusted for: 1024x768 Tube: Sony Trinitron This monitor does not function with a notebook running at 31.5 Khz( VGA standard).
Running the monitor on regular video cards:
This monitor runs fine on high resolution modes on any video card. It requires a special video card to run all the lower resolution modes properly on a PC. (mention that you want -81 Khz setting). We recommend www.mirage-mmc.com to support all the low resolution and high resolution modes. You can run this monitor on normal video cards with the above specification. You must also use a high resolution mode and refresh rate. This monitor will not work in DOS, Safe mode or 640x480 in low refresh rates without the MIRAGE card. We recommend that you use your existing system and previous monitor to change the display settings to one of the high resolutions mentioned below. Please make sure that you also change your monitor type to one which supports higher refresh rates like the Sony G500 Multiscan monitor mentioned below. Then switch to 1280x1204 60 hz mode on your previous monitor and make sure that the picture is ok (some small monitors may not be able to run high resolution and high refresh rates, so if you could not see a recognizable picture, go back to your previous mode). Once the picture is ok, without rebooting and without turning your system off, switch the monitors and connect this monitor. You should get a stable picture on this monitor now. You may want to go to a different resolutions or higher refresh rates. Windows will switch to the new mode and asks you to confirm the new mode within 15 seconds. If you can not see the new mode and do not respond within the 15 seconds, the screen will go back to the previous mode. Important Hint: When changing resolutions and refresh rates, change one at a time. For example to get 1024x768 @85 hz which we recommend on this monitor, first change to 1024x768 resolution. Hit Apply, then change the refresh rate to 85 Hz and hit Apply again. Try using the following resolutions and refresh rates: 800x600 @ 100 Hz 1024x768 @75, 85, 100 Hz (* recommended mode) 1124x864 @75, 85, 100 Hz (* recommended mode) 1280x1024 @60, 70 Hz 1600x1200 @60 Hz
|
|
|
> |
|
