Exactly what was needed to assess the product - excellent value and great service
 ;
Nice to have the service manual for the Sony DCR-TRV345E now. The document is of excellent quality.
;
MACKIE HR824 26 pages English-only Service Manual contains:
1) HR824 technical overview with the description of front and rear panel switches.
2) HR824 specs
3) Block Diagram
4) Wiring Diagram
5) Packaging management
6) Spare part & final assembly list (for PCB rev A and B) + exploded view
7) Test Procedures (where, how to measure voltage...) including Test Point diagram on the PCB.
8) IC and Transistor charts.
Excellent guide: very clear, good scan quality enabling us to print readable diagram :-)
Note:
Mackie HR824 make extensive use of surface mount devices (SMD). Service on the HR824 must
only be undertaken by experienced service technicians with the right tools, experience and patience to perform surface mount rework when needed.
;
This Service manual is very well scanned and its clean to read, no any anti-theft words that un-english could understand. I got my CCD600 working with this manual and it´s clear shematics :)
;
I was very pleased with the service provided and was surprised at how good the quality was of the manual. I thought it may be a third generation copy or so, but it is as good as the websites that charge 3 times this much. I repair some electronics for family and friends without charge, so this is perfect for me. Thank you very much.
Features

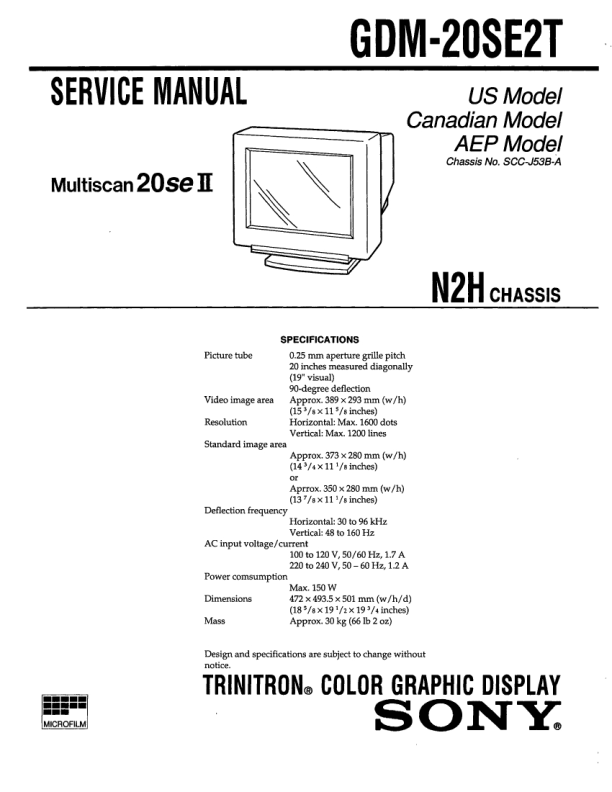

A large viewing area, stylish design, bright colours and sharp pictures - what more could today's discerning user ask for? The Multiscan 20se II offers high resolution and refresh rates while conforming to the latest ergonomic standards. For users requiring a 20� screen for multiple applications, graphics, photos and much more, the solid assurance of Sony Trinitron technology makes the Multiscan 20se II the monitor of choice. Unrivalled Trinitron Technology - 0.25 mm Pitch In 20" CRT The Multiscan 20se II is one of the few 20" monitors offering a 0.25 mm pitch - which means that colours remain as bright and pure as on smaller screens. Picture quality is uniform with Sony Trinitron technology - one hundred million Trinitron displays sold world-wide is ample proof of the Sony advantage. Digital Multiscan for Perfect Images Sony has created an intelligent monitor containing dedicated circuitry that adjusts image parameters automatically, eliminating geographic distortion. Digital Multiscan is the system within the 20se II that uses an internal CPU and ASIC to correct image distortions - such as pincushion balance. Responding to signals from the graphics card, the monitor determines the incoming video frequency and quickly performs all necessary adjustments. So distortion free images appear automatically, at any given resolution. Precision Control with On-Screen Display The Multiscan 20se II offers quick and precise control of a range of image parameters including size, centering and colour temperature thanks to a new on-screen display panel. These user-friendly controls make light work of picture adjustment, showing exact current settings and allowing digitally precise adjustments - at a glance. Windows 95 Users Need Plug and Play With the Multiscan 20se II, Windows 95 users can enjoy true plug and play functionality simply plug in the display to your PC and start to use it straight away. The 20se II offers Display Data Channel (DDC) compatibility, a new standard which allows the monitor to convey important information about itself to a DDC compatible graphics card. Automatic adjustments are then made based on signals from the monitor which make best use of the display - without any user input. Magnetic field compensation Because of the effects of the earth's magnetic field and the exceptionally fine 0.25 mm Trinitron pitch, special attention has been given to beam landing. Sony engineers have developed compensation circuitry to cancel the effects of beam mislanding for a uniform picture quality without distortion. NUTEK and Energy Star Power Management Sony remains committed to a policy of environmental and ergonomic safety. The Multiscan 20se II complies fully with the EPA's (USA Environmental Protection Agency) power management guidelines, and with even stricter guidelines laid down by NUTEK.
|
|
|
> |
|
