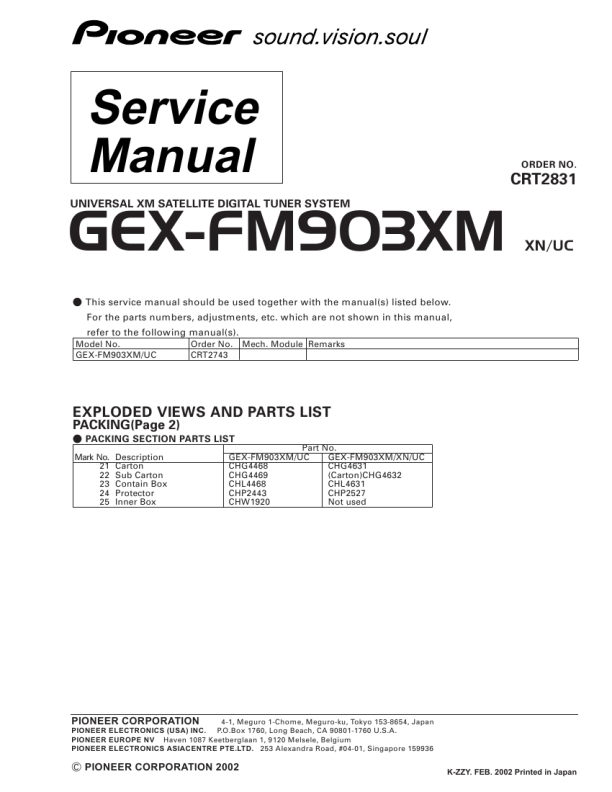

Service Manual
UNIVERSAL XM SATELLITE DIGITAL TUNER SYSTEM
ORDER NO.
CRT2831
GEX-FM903XM
- This service manual should be used together with the manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following manual(s).
Model No. GEX-FM903XM/UC Order No. CRT2743 Mech. Module Remarks
XN/UC
EXPLODED VIEWS AND PARTS LIST
PACKING(Page 2)
Mark No. 21 22 23 24 25 Description Carton Sub Carton Contain Box Protector Inner Box
- PACKING SECTION PARTS LIST
Part No. GEX-FM903XM/UC GEX-FM903XM/XN/UC CHG4468 CHG4631 CHG4469 (Carton)CHG4632 CHL4468 CHL4631 CHP2443 CHP2527 CHW1920 Not used
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2002
K-ZZY. FEB. 2002 Printed in Japan
|
|
|
> |
|
